Description

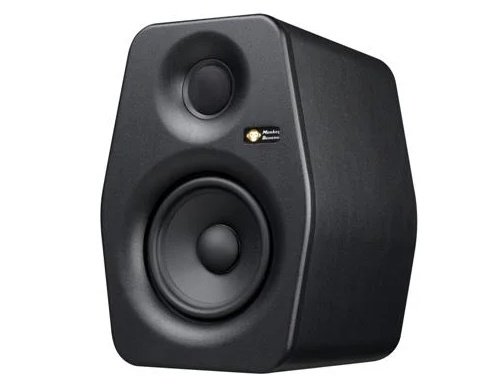

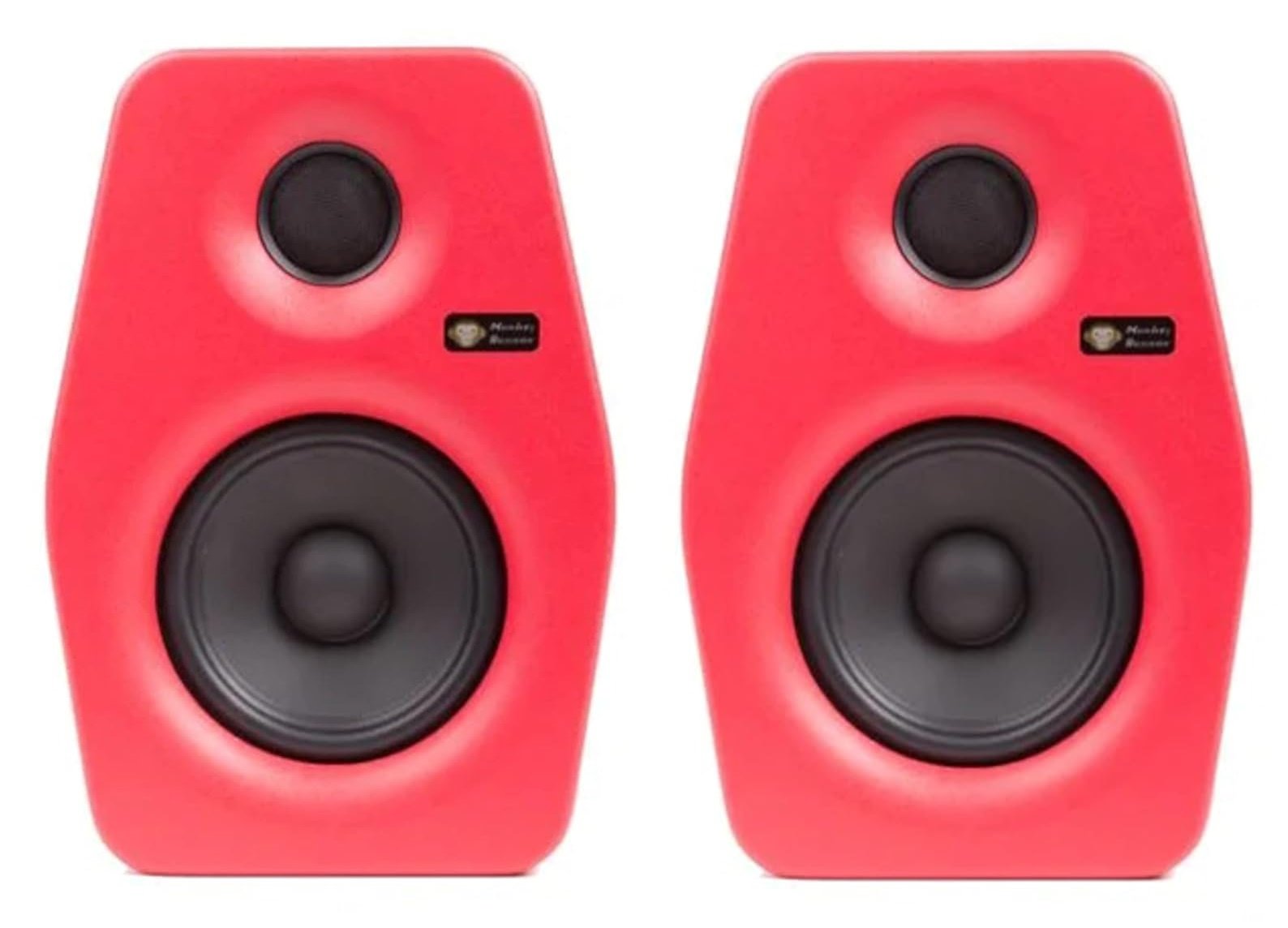

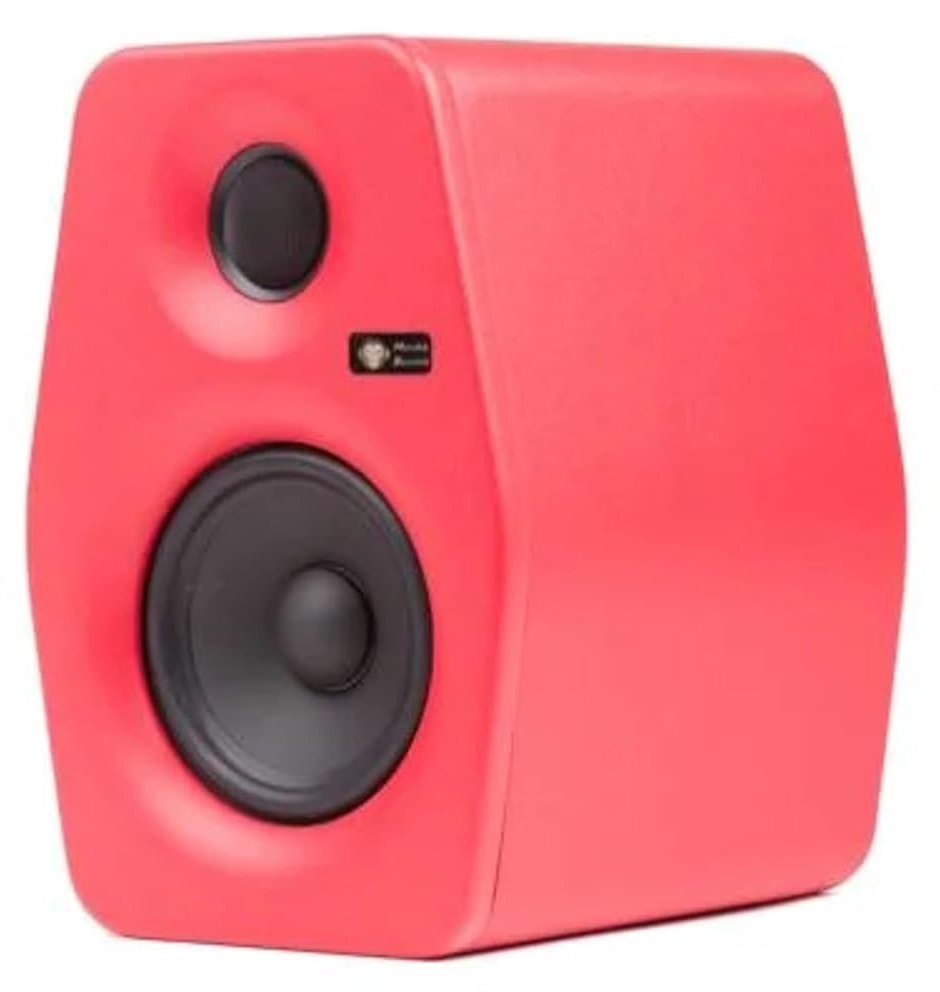

Turbo 5 is an active studio monitor and an ideal solution, when a smaller model is an attractive option. The digital bi-amp-driven loudspeaker is great for perfect mixes and mastering in small to medium monitoring environments. The Turbo 5 is the ideal monitoring solution for professional recording studios. Or do you need accurate control in the broadcasting studio? No problem with the Turbo 5. Ambitious gamers dive into the acoustic gaming world with even more realism. Thanks to the well thought out accessories, the Turbo 5 is also the perfect monitoring solution as a fixed installation in bars, restaurants, shops or in the office.
The application fields for near field monitoring with the small Turbo 5 are extremely broad. A 5.25” woofer with a magnetically shielded polypropylene/ceramic membrane is combined with a 1” silk tweeter. The amplification power of the bi-amp module is 50 watts for the low-end frequency range and 30 watts for the high-end frequency range.
SPECIFICATIONS
Woofer: 5 1/4-inch magnetically shielded polypropylene / ceramic membrane
Tweeter: 1-inch silk dome tweeter
Frequency response: 55Hz – 30kHz
HF – Level: -6dB ~ +6 dB variable at 10kHz
LF – Level: -6dB ~ +6 dB variable at 100Hz
Crossover frequency: 3kHz
LF – Amplifier Power: 50W
HF – Amplifier Power 30W
Signal HF / LF: 90dB / 95dB
THD + N @ Rated Power HF / LF: 0.02% / 0.05%

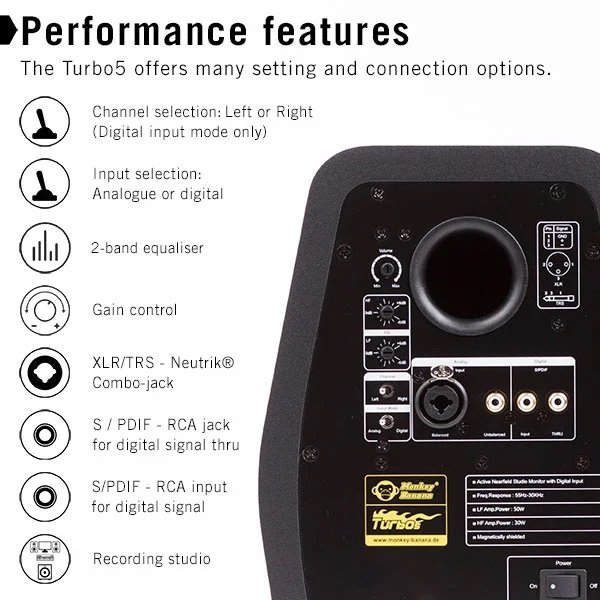

Inputs: XLR/TRS – Neutrik® Combo-jack, RCA input, S/PDIF – RCA input for digital signal
Outputs: S / PDIF – RCA jack for digital signal thru
Input Select: Analog or Digital
Channel selection: Left or Right (Digital input mode only)
Input Impedance: 20 kOhm balanced, 10 kOhm unbalanced
Input Sensitivity: +4 dBu (Balanced), -10dBV (unbalanced)
Available colors: Red, Black
Gross Weight: 7.5 kg / 16.6lb
Net weight: 5.9 kg / 13lb

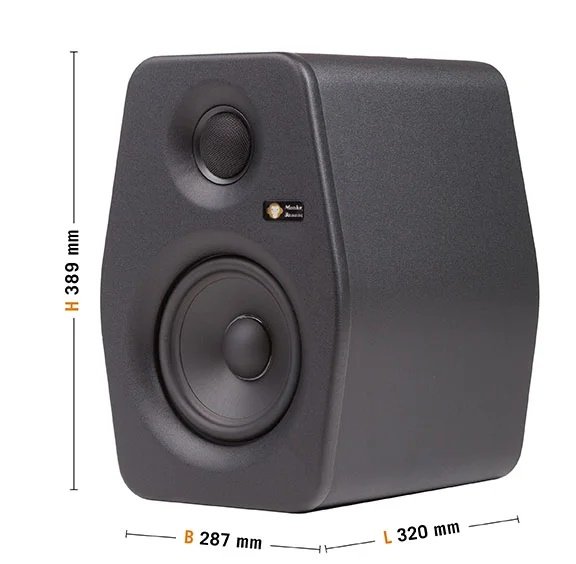

Gross Dimensions: L320 x W287 x H389 mm
L12.6x W11.3 x H15.31 in
Net Dimensions: L222 x W192 x H275 mm
L8.74x W7.56 x H10.83 in

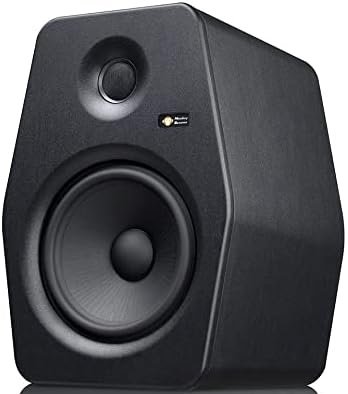

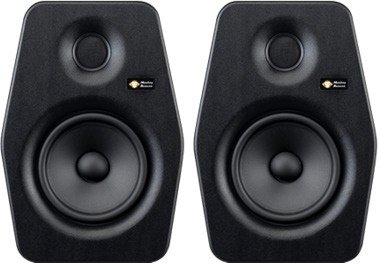

Turbo 6 is an active studio monitor. The digital bi-amp-driven loudspeaker is conceived for perfect mixes and mastering in medium to large monitoring environments. The Turbo 6 is the ideal monitoring solution for professional recording- and mastering studios. Furthermore, this model is a perfect loudspeaker for DJ-monitoring. Or do you need accurate control in the broadcasting studio? No problem with the Turbo 6. With a frequency response enhanced downwards, Turbo 6 in not only an ideal solution for professional studios, but also for large living rooms.
The application fields for near field monitoring with the Turbo 6 are extremely broad. A 6.5” woofer with a magnetically shielded polypropylene/ceramic membrane is combined with a 1” silk tweeter. The amplification power of the bi-amp module is 60 watts for the low-end frequency range and 30 watts for the high-end frequency range.
SPECIFICATIONS
Woofer: 6 1/2-inch magnetically shielded polypropylene / ceramic membrane
Tweeter: 1-inch silk dome tweeter
Frequency response: 50Hz – 30kHz
HF – Level: -6dB ~ +6 dB variable at 10kHz
LF – Level: -6dB ~ +6 dB variable at 100Hz
Crossover frequency: 3kHz
LF – Amplifier Power: 60W
HF – Amplifier Power 30W
Signal HF / LF: 92dB / 98dB
THD + N @ Rated Power HF / LF: 0.05% / 0.02%

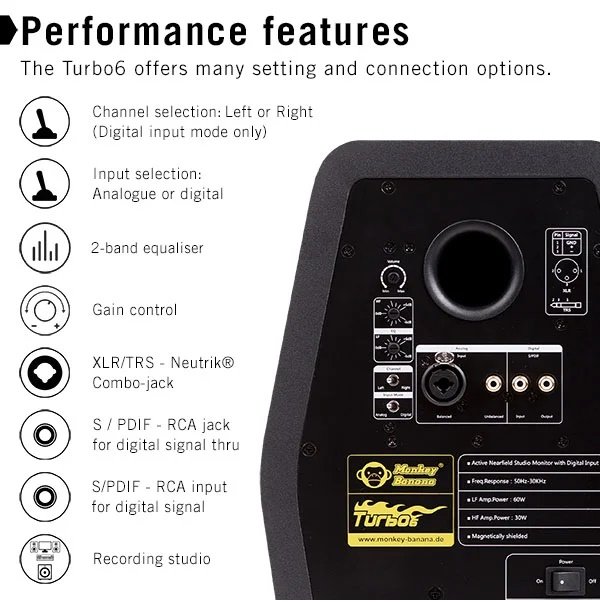

Inputs: XLR/TRS – Neutrik® Combo-jack, RCA input, S/PDIF – RCA input for digital signal
Outputs: S / PDIF – RCA jack for digital signal thru
Input Select: Analog or Digital
Channel selection: Left or Right (Digital input mode only)
Input Impedance: 20 kOhm balanced, 10 kOhm unbalanced
Input Sensitivity: +4 dBu (Balanced), -10dBV (unbalanced)
Available colors: Red, Black
Gross Weight: 9.1 kg / 20lb
Net weight: 7.6 kg / 16.7lb

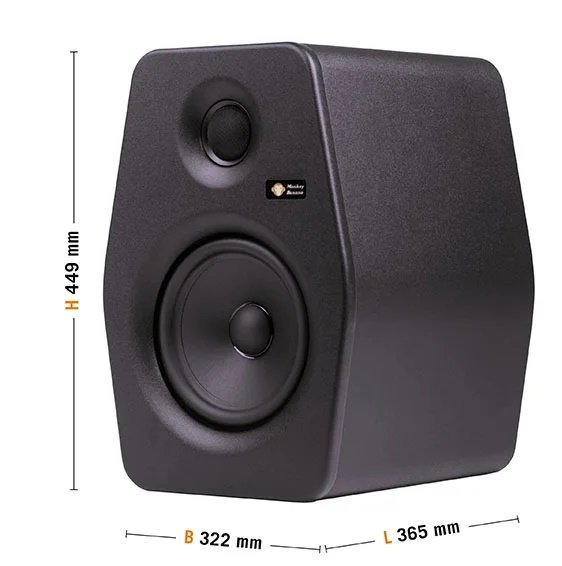

Gross Dimensions: L365 x W322 x H449 mm
L14.37x W12.67 x H17.67 in
Net Dimensions: L260 x W229 x H328 mm
L10.24 x W9.02 x H12.91 in

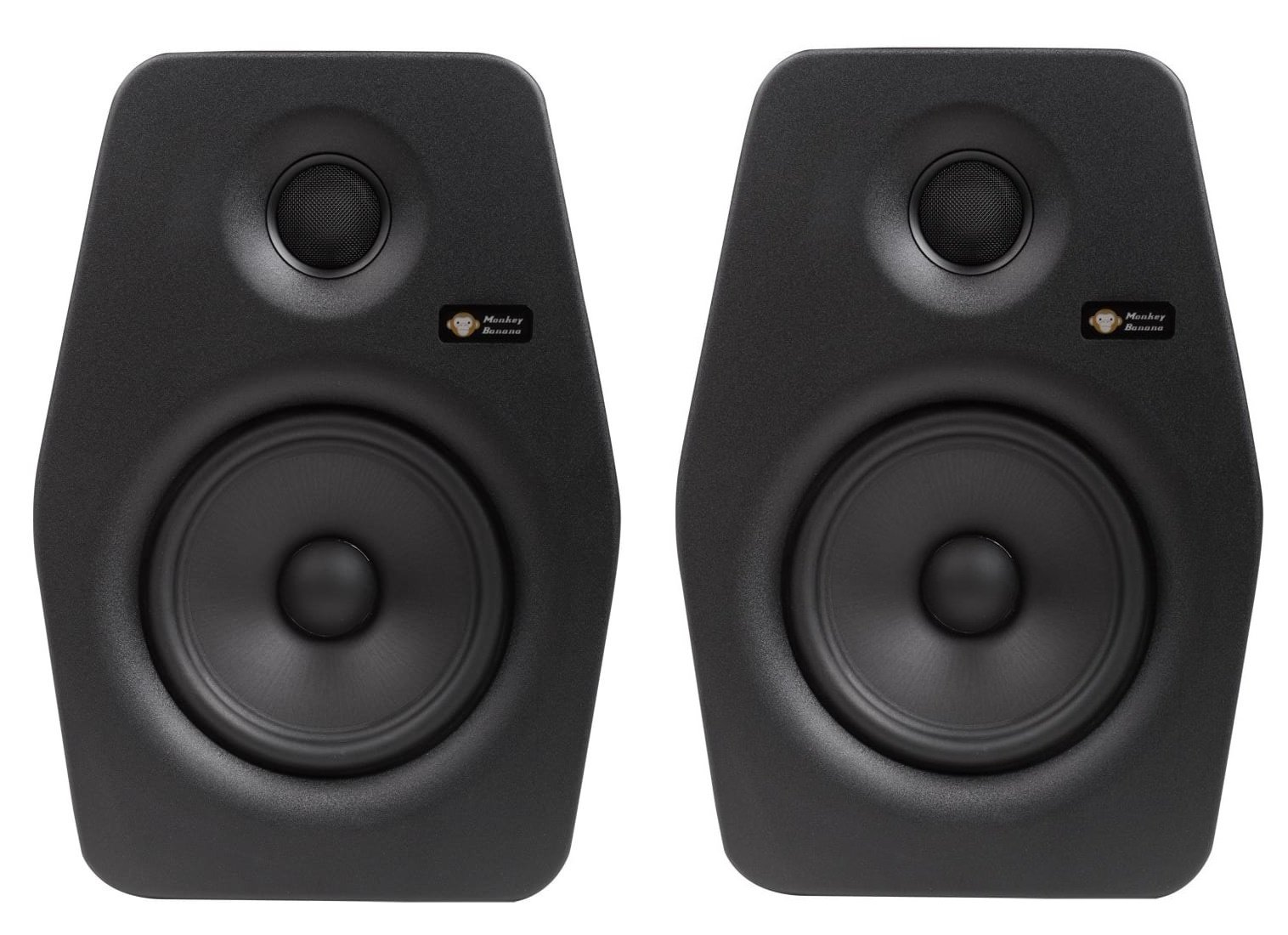

Turbo 8 is an active studio monitor. The digital bi-amp-driven loudspeaker is conceived for perfect mixes and mastering in medium to large monitoring environments. The Turbo 8 is the ideal monitoring solution for professional recording- and mastering studios. Furthermore, this model is a perfect loudspeaker for DJ-monitoring. The pronouncedly downward extended frequency range will appeal to high-end- and HiFi-enthusiasts. The Turbo 8 is not just suitable for professional Studios, but also for large living rooms.
The application fields for near field monitoring with the Turbo 8 are extremely broad. An 8” woofer with a magnetically shielded polypropylene/ceramic membrane is combined with a 1” silk tweeter. The amplification power of the bi-amp module is 80 watts for the low-end frequency range and 30 watts for the high-end frequency range.
SPECIFICATIONS
Woofer: 8-inch magnetically shielded polypropylene / ceramic membrane
Tweeter: 1-inch silk dome tweeter
Frequency response: 45Hz – 30kHz
HF – Level: -6dB ~ +6 dB variable at 10kHz
LF – Level: -6dB ~ +6 dB variable at 100Hz
Crossover frequency: 3kHz
LF – Amplifier Power: 80W
HF – Amplifier Power 30W
Signal HF / LF: 94dB / 100dB
THD + N @ Rated Power HF / LF: 0.04% / 0.02%

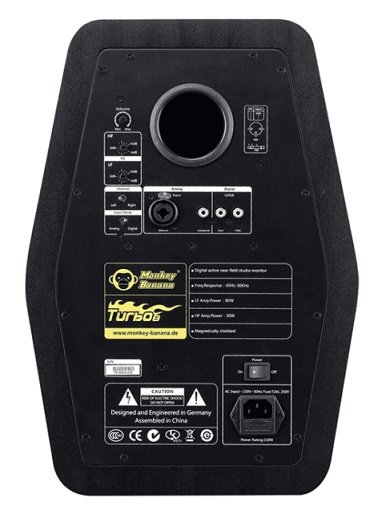

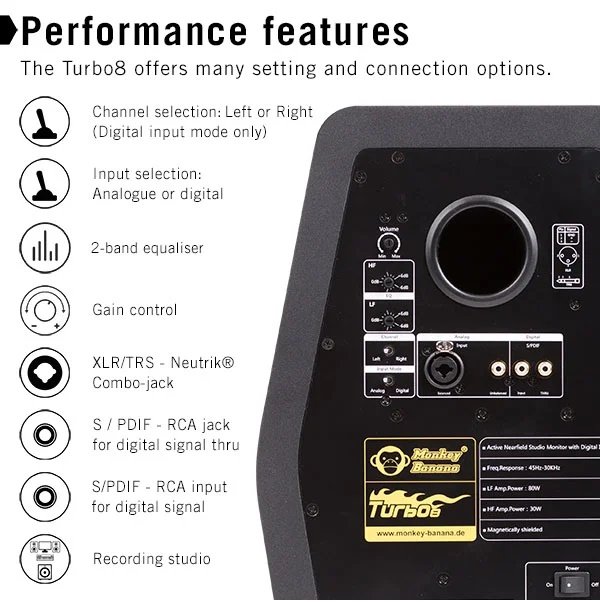

Inputs: XLR/TRS – Neutrik® Combo-jack, RCA input, S/PDIF – RCA input for digital signal
Outputs: S / PDIF – RCA jack for digital signal thru
Input Select: Analog or Digital
Channel selection: Left or Right (Digital input mode only)
Input Impedance: 20 kOhm balanced, 10 kOhm unbalanced
Input Sensitivity: +4 dBu (Balanced), -10dBV (unbalanced)
Available colors: Red, Black
Gross Weight: 15 kg / 33lb
Net weight: 12.2 kg / 26.8lb

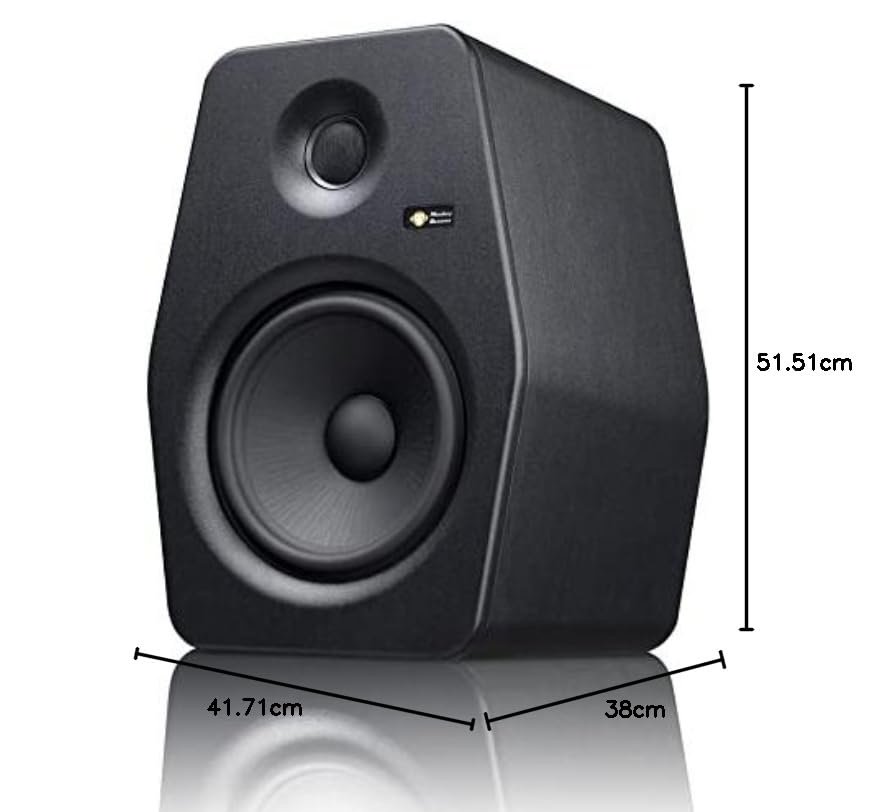

Gross Dimensions: L425 x W385 x H522 mm
L16.73 x W15.15 x H20.55 in
Net Dimensions: L308 x W272 x H390 mm
L12.13 x W10.71 x H15.35 in

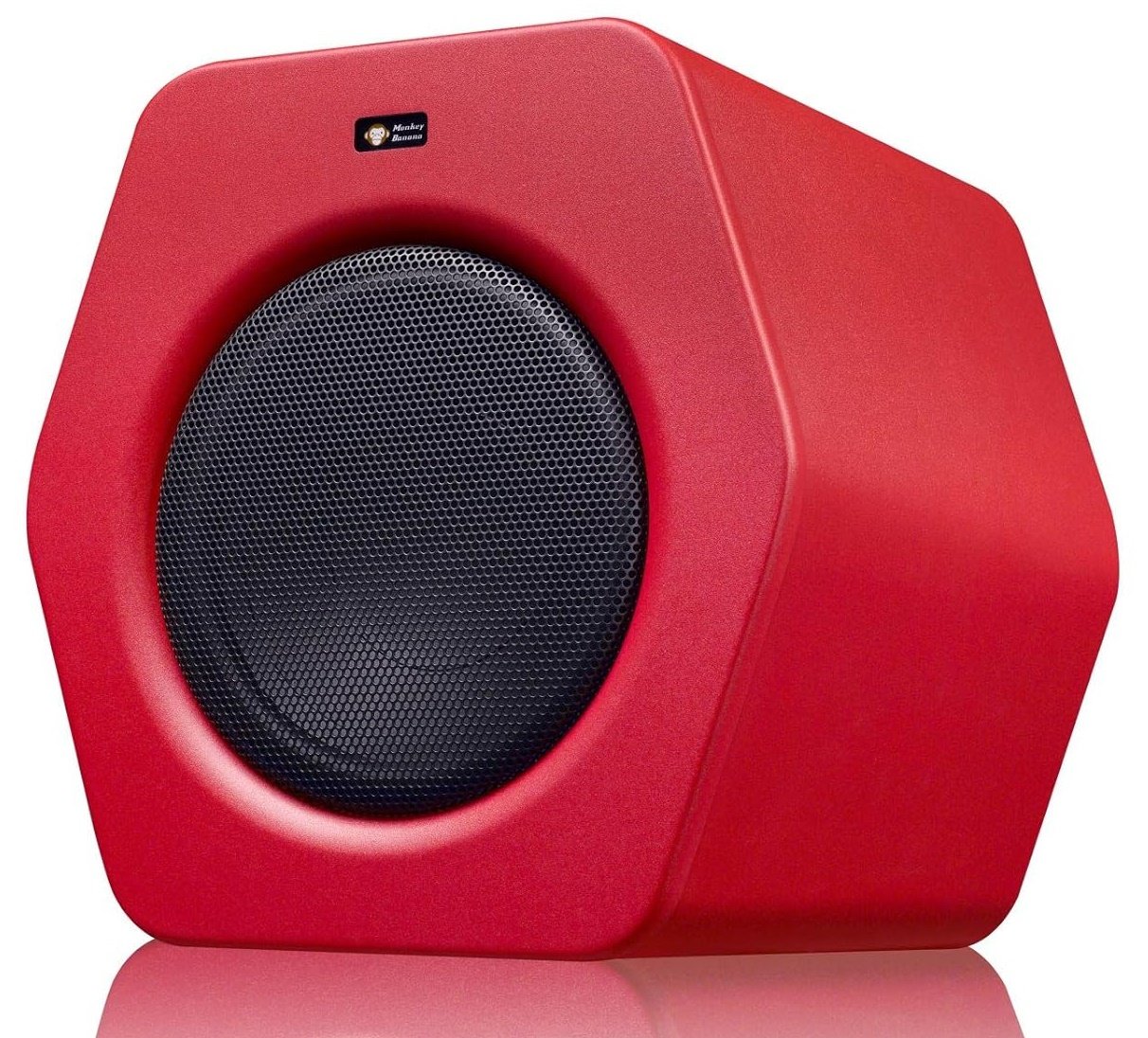

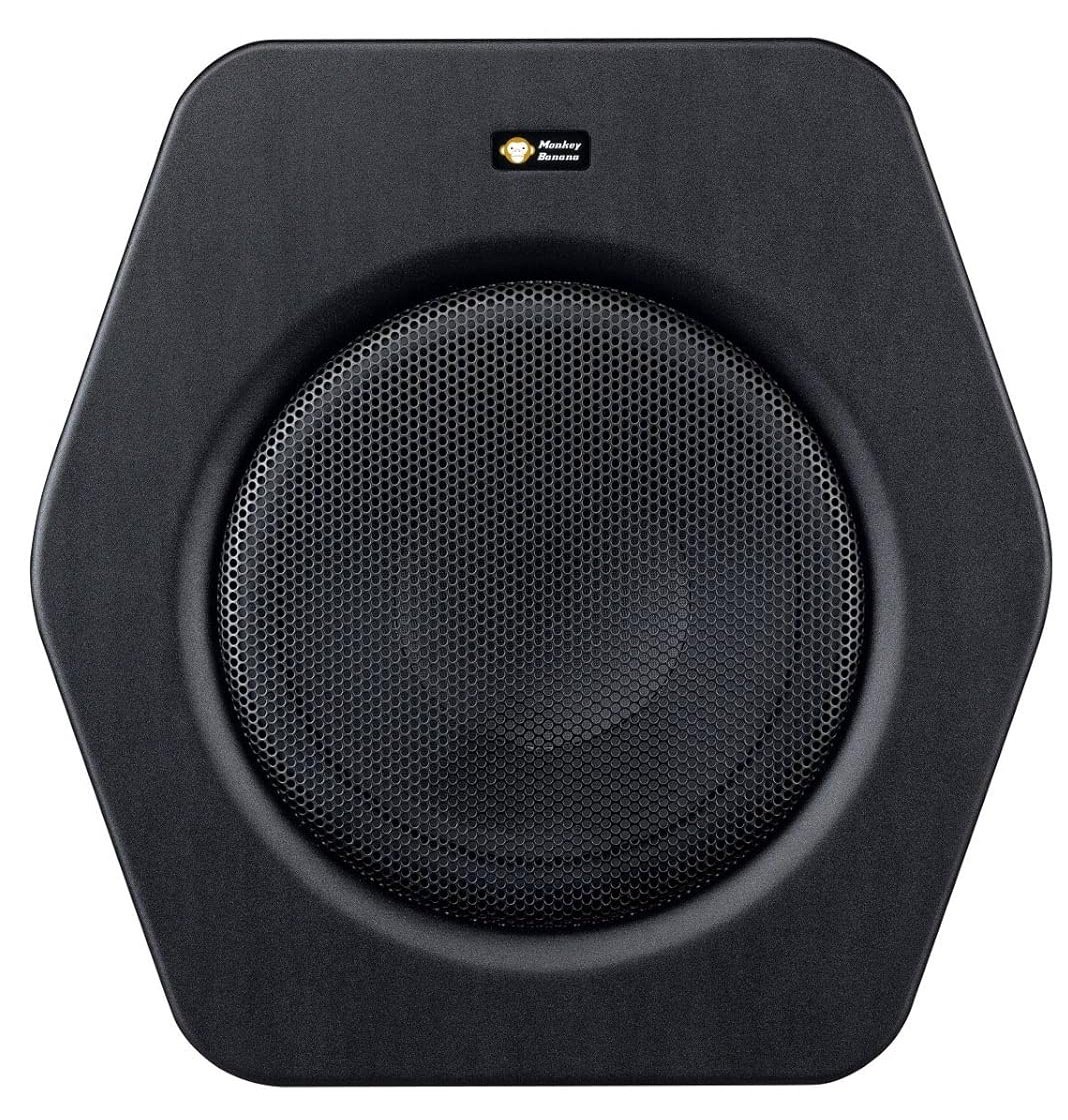

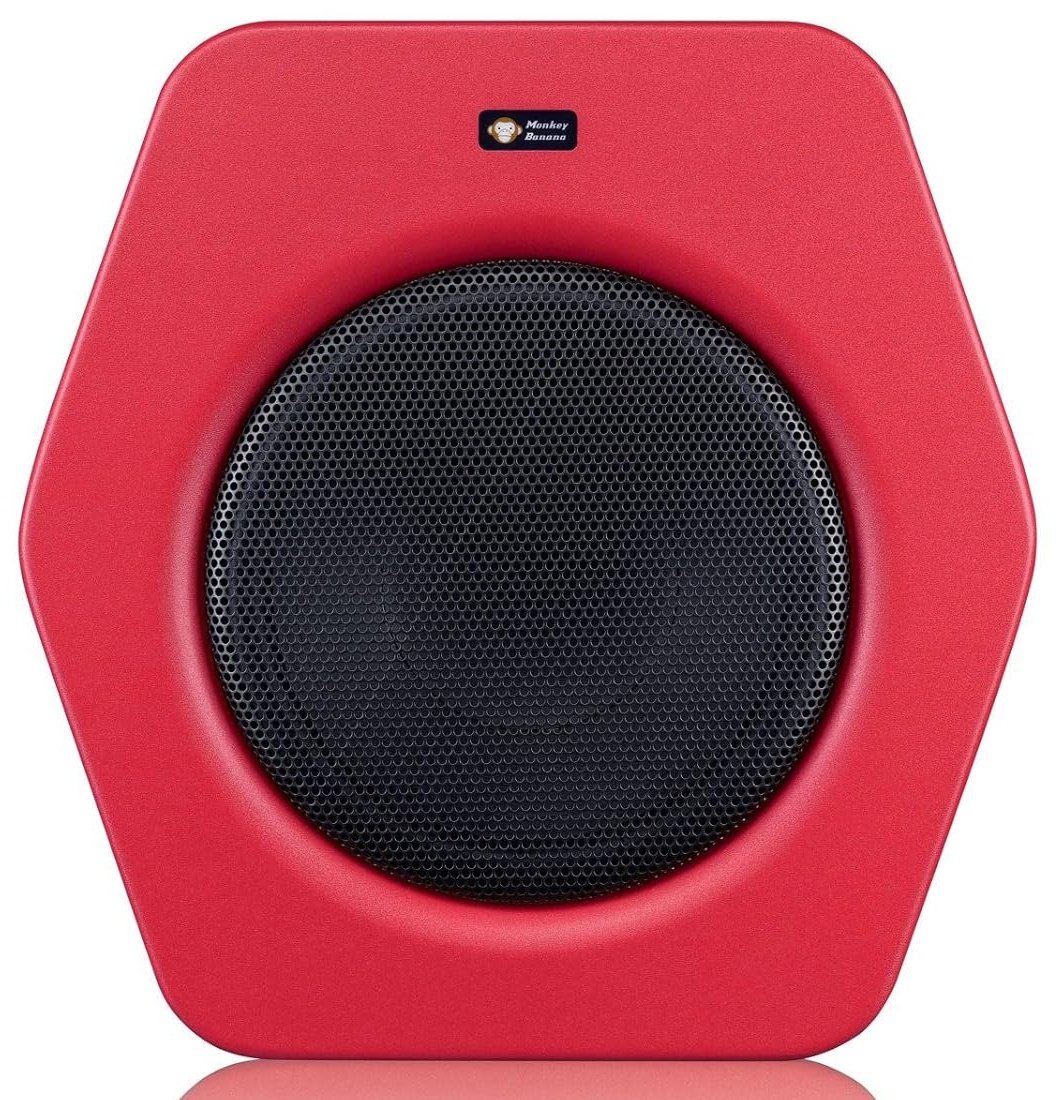

Turbo 10s is an active subwoofer for applications in professional recording- and mastering studios. Perfectly matched to the Turbo series, the low-end frequencies are significantly extended. Furthermore, this model is the ideal deep-bass support for DJ-monitoring. Thanks to the adjustable crossover, the Turbo 10s subwoofer can be combined perfectly with all Turbo models. The subwoofer is suitable for professional studios, as well as large living rooms and it supports the low-end frequency range in fixed installations. The application fields for the Turbo 10s are extremely broad. It is equipped with a 10” woofer. The amplification power is massive 300 watts. The crossover is flexibly adjustable between 40 and 120Hz.
SPECIFICATIONS
Woofer: 10-inch Paper Cone
Frequency response: 20Hz – 40Hz ~ 120Hz
Crossover frequency: 40-120Hz adjustable
Lf – Amplifier Power: 300W
Signal LF: >90dB
THD + N @ Rated Power LF: 0.08%
Inputs: 2x XLR,
2x TRS,
2x RCA Connectors,
S/PDIF Connector for digital signal
Outputs: 2x XLR,
2x TRS
2x RCA Connectors,
S/PDIF – RCA jack for digital signal thru
Input Impedance: 20 kOhm balanced, 10 kOhm unbalanced
Input Sensitivity: +4 dBu (Balanced), -10dBV (unbalanced)
Phase reverse: 0° /180° switch
Available colors: Red, Black
Gross Weight: 22.4kg / 49.2lb
Net weight: 18.7kg / 41.1lb
Gross Dimensions: L500 x W523 x H523 mm
L19.68x W20.59 x H20.59 in

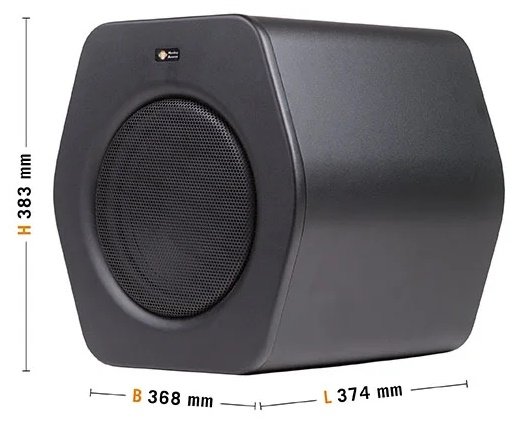

Net Dimensions: L374 x W368 x H383 mm
L14.72 x W14.49 x H15.08 in
