The new TASCAM SERIES audio interface family provides professional quality.
The new TASCAM SERIES audio interface family provides professional quality.
Expandability, both internal and bundled effects processing, internal mixing, external software control, and more for studio, home, and live recording. With a new look, including an angled tabletop design and large, easy-to-grab knobs, TASCAM sets a new standard for mid-grade audio interfaces.
Special versatile bundled software to produce your music from start to finish
TASCAM SERIES audio interfaces are bundled with a series of software that allow full operational coverage: at the core of music production is Steinberg’s Cubase LE / Cubasis LE; for instrumental recordings comes IK Multimedia’s AmpliTube with guitar/bass modeling and colorful effects; newly added to the bundle is iZotope’s redesigned Neutron Elements, which includes 4 powerful tools for creating great mixes; last but not least, IK Multimedia’s T-RackS mastering software will finish up users’ creations into high quality masterpieces.
FEATURES
Supreme Audio Fidelity
It all starts with the best sound: TEAC and TASCAM have more than 60 years of high grade audio design experience.
TASCAM Ultra HDDA (High Definition Discrete Architecture) mic preamp circuitry guarantees transparent natural tone with ultra-low noise.
24-bit/192 kHz
The new windows driver also allows to set the minimum size of the audio buffer (from only 4 samples), which results lesser round trip latency with maximum performance, suitable for each computer’s configuration.
Expandable input capability to grow into
Easily add more input channels to accommodate future growth by using external microphone preamplifiers with S/MUX optical inputs to record drums, guitars, keyboards, vocals, and more. Each S/MUX optical port can accept up to 8 channels of audio input from an ADAT- or S/MUX-compatible device.
Well-designed interface for quick production

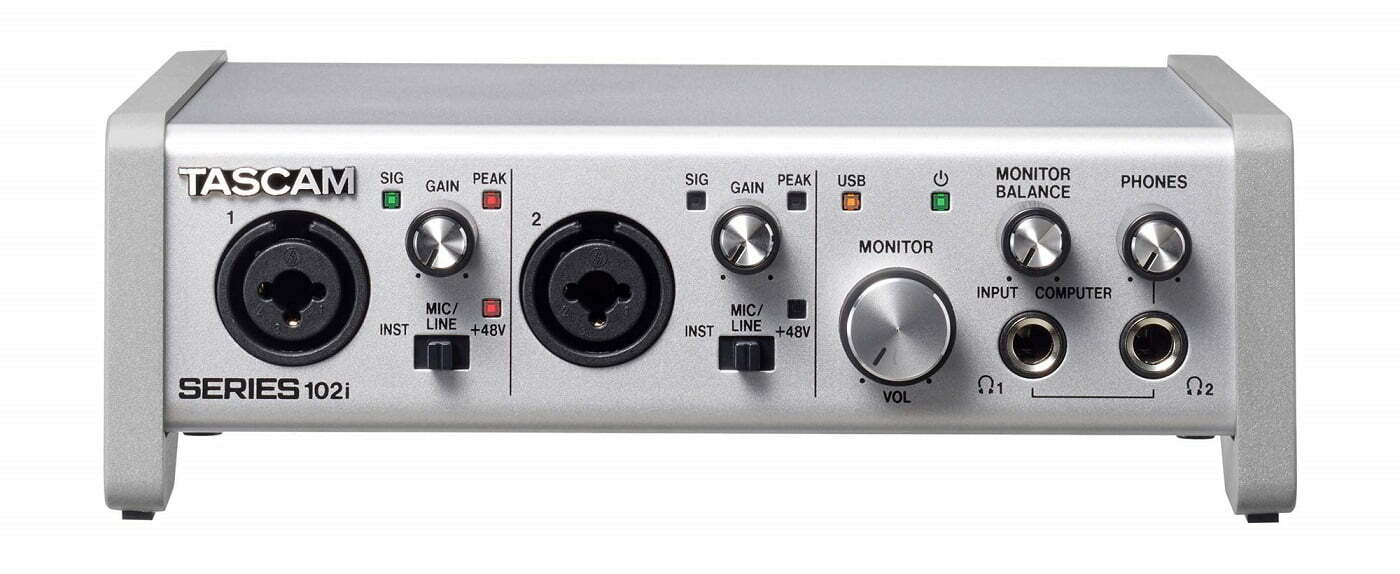

TASCAM SERIES audio interfaces feature a large, easy-to-grab Monitor control knob that ensures you can quickly adjust the monitor output level. Their angled tabletop design offers easy access to all front-panel controls. A handy Monitor Balance control enables mixing live input with computer playback for zero-latency monitoring. Each analog input channel is served by an individually switched +48 volt phantom power supply for condenser microphones.
Dual headphone monitoring
The SERIES interface has 2 individual headphone amplifiers which offer powerful enough dual headphone monitoring.
Control Software for Matrix Mixing, Effects Processors, and More
Free, easy-to-use TASCAM Control software (TASCAM SERIES Settings Panel) manages faders, processing, and the ability to route any audio input (analog, optical, and USB) to any audio output.
Built-in DSP Effects and Processing
A DSP input and output mixer is complemented with digital reverb, compressor, phase invert, and 4-band EQ for each channel. Having these processors included internally eliminates all latency issues and takes the load off the computer allowing the Windows / Mac to process the audio more efficiently.
Mobility
TASCAM SERIES interfaces support tablets and other mobile devices and are compatible with many applications to meet your recording needs now and in the future.
Spec description
Sampling Frequency
44.1k / 48k / 88.2k / 96k / 176.4k / 192k Hz
Quantization Bit Rate
16 / 24-bit
Analog Audio Inputs
MIC IN (Balanced)
1-2 (when the input switch is set to MIC/LINE)
Connector
XLR-3-31 equivalent (1: GND, 2: HOT, 3: COLD)
Input Impedance
1.5kΩ
Nominal Input Level
GAIN: MAX
-64dBu (0.0005Vrms)
GAIN: MIN
-6dBu (0.388Vrms)
Maximum Input Level
+10dBu (2.45Vrms)
Gain Range
58dB
INSTRUMENT IN (Unbalanced)
1-2 (when the input switch is set to INST)
Connector
1/4″ (6.3mm) TS jack (Tip: HOT, Sleeve: GND)
Input Impedance
1MΩ or more
Nominal Input Level
GAIN: MAX
-64dBV (0.0006Vrms)
GAIN: MIN
-6dBV (0.501Vrms)
Maximum Input Level
+10dBV (3.162Vrms)
Gain Range
58dB
LINE IN (Balanced)
1-2 (when the input switch is set to MIC/LINE)
Connector
1/4″ (6.3mm) TRS jack (Tip: HOT, Ring: COLD, Sleeve: GND)
Input Impedance
10kΩ
Nominal Input Level
GAIN: MAX
-54dBu (0.0015Vrms)
GAIN: MIN
+4dBu (1.228Vrms)
Maximum Input Level
+24dBu (12.282Vrms)
Gain Range
58dB
Digital Audio Inputs
OPTICAL IN (S/MUX)
Connector
OPTICAL (JEITA RC-5720C)
Signal Format
Multi-channel Optical Format
(Supports S/MUX at 88.2k/96k/176.4k/192kHz)

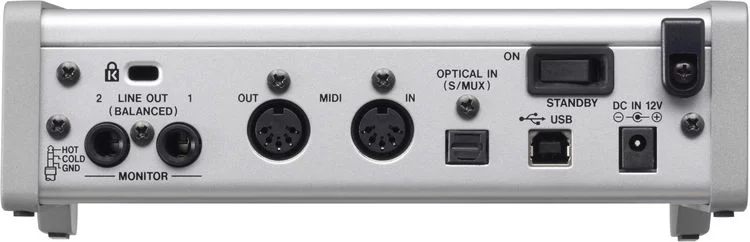

Analog Audio Outputs
MONITOR OUT (Balanced)
LINE OUT 1-2
Connector
1/4″ (6.3mm) TRS jack (Tip: HOT, Ring: COLD, Sleeve: GND)
Output Impedance
230Ω
Nominal Output Level
+4dBu (1.228Vrms)
Maximum Output Level
+20dBu (7.75Vrms)
HEADPHONE OUT
PHONES 1-2
Connector
1/4″ (6.3mm) Stereo jack
Maximum Output Power
18mW + 18mW (THD+N 0.1% or less, into 32Ω load)
Output impedance
83Ω
Working impedance
16Ω to 300Ω
Control Input/Output
USB
Connector
4-pin, USB B type
Format
USB2.0 HIGH SPEED (480Mbps)
MIDI IN
Connector
5-pin, DIN
Format
Standard MIDI
MIDI OUT
Connector
5-pin, DIN
Format
Standard MIDI
Power
DC 12V (AC Adapter PS-P1220E included)
Power Consumption
7.2 W
Dimensions (W×H×D)
186 × 65 × 160 mm
Weight
1.1 kg
Operating Temperature Range
5 to 35°C
Audio Performance
Mic Amp EIN
-129dBu or lower
Frequency Response
Fs 44.1k/48kHz
20Hz to 20kHz, +0/-0.4dB (JEITA)
Fs 88.2k/96kHz
20Hz to 40kHz, +0/-0.8dB (JEITA)
Total Harmonic Distortion
MIC IN
0.0016% (1kHz sine wave, GAIN knob at minimum, 20k SPCL LPF)
LINE IN
0.0023% (1kHz sine wave, GAIN knob at minimum, 20k SPCL LPF)
Signal-to-Noise Ratio
MIC/LINE IN
109dB (GAIN knob at minimum, 20k SPCL LPF+A-Weight)
Crosstalk
100dB or higher (MIC/LINE IN thru LINE OUT, 1kHz sine wave, Gain knob at minimum)
Computer System Requirements
Windows
Compatible Computers
Windows computer with a USB2.0 or USB3.0
CPU
Dual core (x86), 2GHz or faster
Memory
2GB or more
Driver
USB Audio Class2.0, ASIO2.2, WDM (MME), MIDI
Macintosh
Compatible Computers
Macintosh computer with a USB2.0 or USB3.0
CPU
Dual core, 2GHz or faster
Memory
2GB or more
Driver
Core Audio, Core MIDI
* Verified with Intel and Apple Silicon (M1 and M2) hardware
iOS
Driver
Core Audio for iPhone
Supported OS’
Windows
Windows 10 2022 Update (Version 22H2) New , Windows 11 2022 Update (Version 22H2) New , Windows 11 , Windows 10 (November 2021 Update) , Windows 10 (May 2021 Update) , Windows 10 (October 2020 Update) , Windows 10 (May 2020 Update) , Windows 8.1 , Windows 7
Mac
macOS Ventura New , macOS Monterey , macOS Big Sur , macOS Catalina , macOS Mojave , macOS High Sierra (10.13) , macOS Sierra (10.12)
, WDM (MME), MIDI
