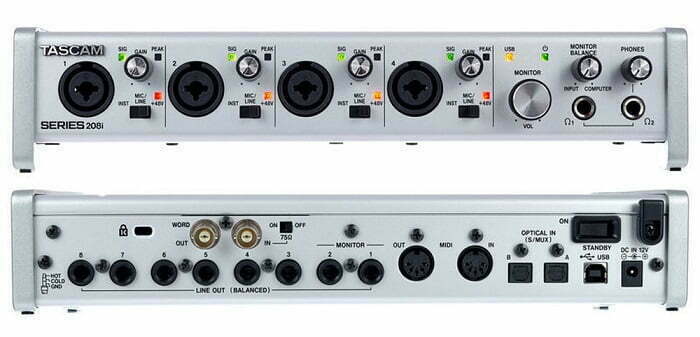

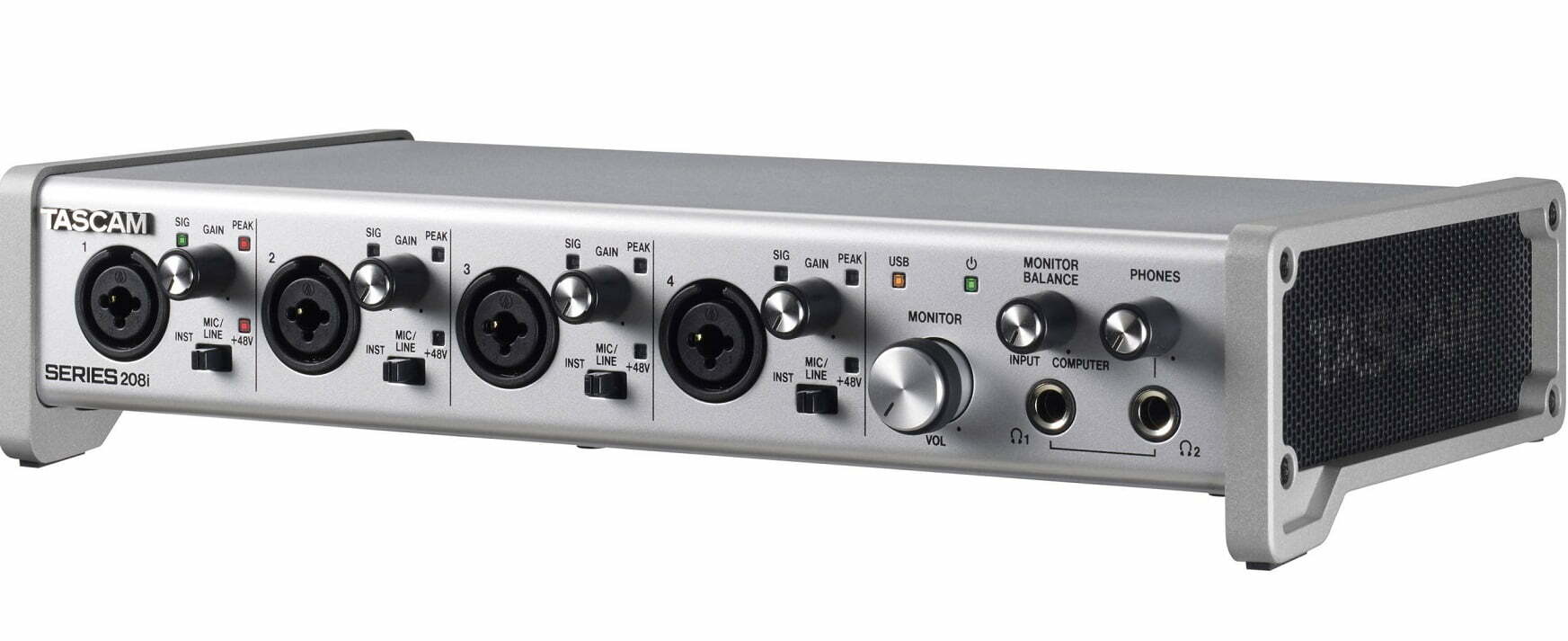

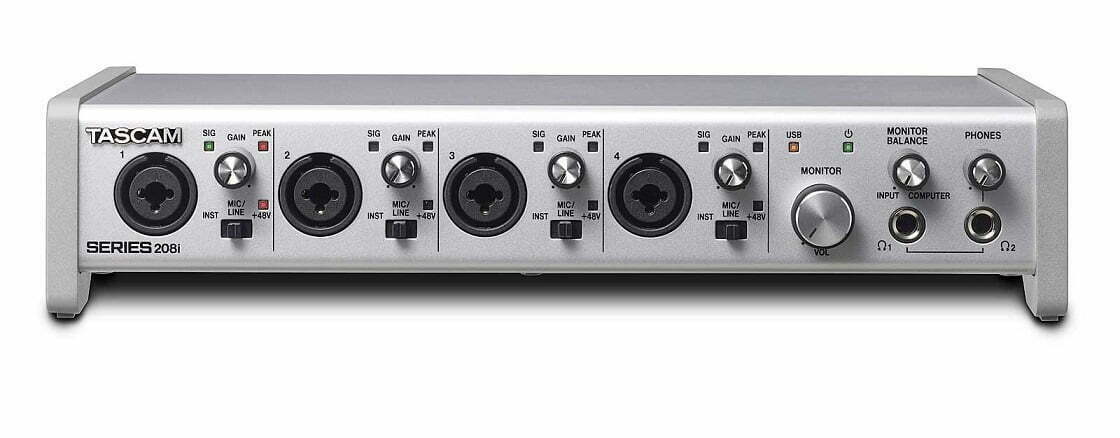

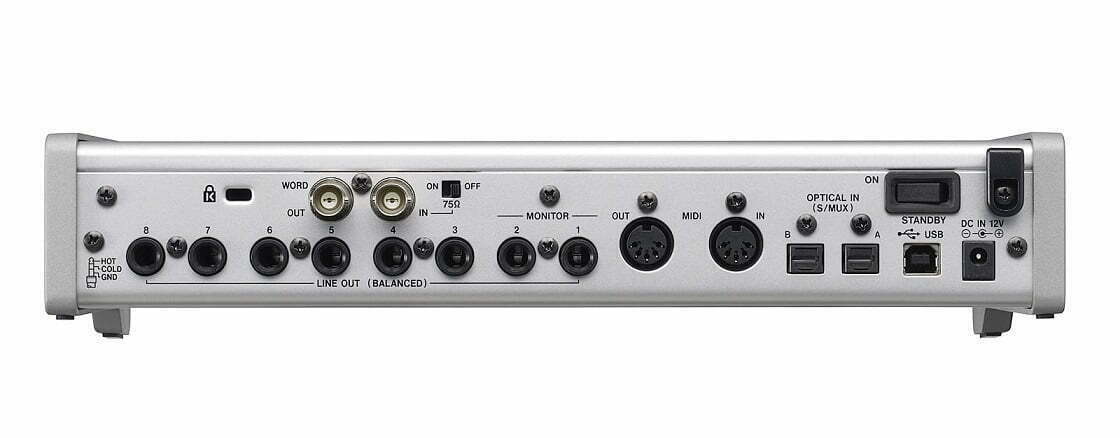

Tascam Series 208i
Tascam Series 208i - Image 2
Tascam Series 208i - Image 3
Tascam Series 208i - Image 4
Tascam Series 208i - Image 5

Tascam Series 208i

Rp8.700.000

Add to wishlist
SKU: TSCM-SRS-208I Categories: , Tags: , ,

Description

20 IN/8 OUT USB Audio/MIDI Interface

SERIES 208i

The new TASCAM SERIES audio interface family provides professional quality

The new TASCAM SERIES audio interface family provides professional quality.

Expandability, both internal and bundled effects processing, internal mixing, external software control, and more for studio, home, and live recording. With a new look, including an angled tabletop design and large, easy-to-grab knobs, TASCAM sets a new standard for mid-grade audio interfaces.

Special versatile bundled software to produce your music from start to finish

TASCAM SERIES audio interfaces are bundled with a series of software that allow full operational coverage: at the core of music production is Steinberg’s Cubase LE / Cubasis LE; for instrumental recordings comes IK Multimedia’s AmpliTube with guitar/bass modeling and colorful effects; newly added to the bundle is iZotope’s redesigned Neutron Elements, which includes 4 powerful tools for creating great mixes; last but not least, IK Multimedia’s T-RackS mastering software will finish up users’ creations into high quality masterpieces.

Spec description

Sampling Frequency 44.1k / 48k / 88.2k / 96k / 176.4k / 192k Hz
Quantization Bit Rate 16 / 24-bit
Analog Audio Inputs
MIC IN (Balanced) 1-4 (when the input switch is set to MIC/LINE)
Connector XLR-3-31 equivalent (1: GND, 2: HOT, 3: COLD)
Input Impedance 1.5kΩ
Nominal Input Level
GAIN: MAX -64dBu (0.0005Vrms)
GAIN: MIN -6dBu (0.388Vrms)
Maximum Input Level +10dBu (2.45Vrms)
Gain Range 58dB
INSTRUMENT IN (Unbalanced) 1-4 (when the input switch is set to INST)
Connector 1/4″ (6.3mm) TS jack (Tip: HOT, Sleeve: GND)
Input Impedance 1MΩ or more
Nominal Input Level
GAIN: MAX -64dBV (0.0006Vrms)
GAIN: MIN -6dBV (0.501Vrms)
Maximum Input Level +10dBV (3.162Vrms)
Gain Range 58dB
LINE IN (Balanced) 1-4 (when the input switch is set to MIC/LINE)
Connector 1/4″ (6.3mm) TRS jack (Tip: HOT, Ring: COLD, Sleeve: GND)
Input Impedance 10kΩ
Nominal Input Level
GAIN: MAX -54dBu (0.0015Vrms)
GAIN: MIN +4dBu (1.228Vrms)
Maximum Input Level +24dBu (12.282Vrms)
Gain Range 58dB
Digital Audio Inputs
OPTICAL IN (S/MUX)
Connector OPTICAL (JEITA RC-5720C)
Signal Format Multi-channel Optical Format
(Supports S/MUX at 88.2k/96k/176.4k/192kHz)
Analog Audio Outputs
MONITOR OUT (Balanced) LINE OUT 1-2
Connector 1/4″ (6.3mm) TRS jack (Tip: HOT, Ring: COLD, Sleeve: GND)
Output Impedance 230Ω
Nominal Output Level +4dBu (1.228Vrms)
Maximum Output Level +20dBu (7.75Vrms)
LINE OUT (Balanced) LINE OUT 3-8
Connector 1/4″ (6.3mm) TRS jack (Tip: HOT, Ring: COLD, Sleeve: GND)
Output Impedance 230Ω
Nominal Output Level +4dBu (1.228Vrms)
Maximum Output Level +20dBu (7.75Vrms)
HEADPHONE OUT PHONES 1-2
Connector 1/4″ (6.3mm) Stereo jack
Maximum Output Power 45mW + 45mW (THD+N 0.1% or less, into 32Ω load)
Output impedance 51.5Ω
Working impedance 16Ω to 600Ω
Control Input/Output
USB
Connector 4-pin, USB B type
Format USB2.0 HIGH SPEED (480Mbps)
MIDI IN
Connector 5-pin, DIN
Format Standard MIDI
MIDI OUT
Connector 5-pin, DIN
Format Standard MIDI
WORD IN
Connector BNC
Input Voltage 2.0Vpp to 5.0Vpp
Input Impedance 75Ω ±10%
Frequency Deviation ±100ppm
Terminal ON/OFF Switch Equipped
WORD OUT
Connector BNC
Output Voltage 2.0Vpp (into 75Ω)
Output Impedance 75Ω ±10%
Sampling Frequency 44.1k / 48k / 88.2k / 96k / 176.4k /192k Hz
Power DC 12V (AC Adapter PS-P1220E included)
Power Consumption 14 W
Dimensions (W×H×D) 11.65″ × 2.56″ × 6.30″ / 296 × 65 × 160 mm
Weight 3.53 lbs. / 1.6 kg
Operating Temperature Range 41 to 95°F / 5 to 35°C



Audio Performance

Mic Amp EIN -129dBu or lower
Frequency Response
Fs 44.1k/48kHz 20Hz to 20kHz, +0/-0.4dB (JEITA)
Fs 88.2k/96kHz 20Hz to 40kHz, +0/-0.8dB (JEITA)
Total Harmonic Distortion
MIC IN 0.0016% (1kHz sine wave, GAIN knob at minimum, 20k SPCL LPF)
LINE IN 0.0023% (1kHz sine wave, GAIN knob at minimum, 20k SPCL LPF)
Signal-to-Noise Ratio
MIC/LINE IN 109dB (GAIN knob at minimum, 20k SPCL LPF+A-Weight)
Crosstalk 100dB or higher (MIC/LINE IN thru LINE OUT, 1kHz sine wave, Gain knob at minimum)



Computer System Requirements

Windows
Compatible Computers Windows computer with a USB2.0 or USB3.0
CPU Dual core (x86), 2GHz or faster
Memory 2GB or more
Driver USB Audio Class2.0, ASIO2.2SERIES 102i, WDM (MME), MIDI
Macintosh
Compatible Computers Macintosh computer with a USB2.0 or USB3.0
CPU Dual core, 2GHz or faster
Memory 2GB or more
Driver Core Audio, Core MIDI

* Verified with Intel and Apple Silicon (M1 and M2) hardware

iOS
Driver Core Audio for iPhone



Supported OS’

Windows

Windows 10 2022 Update (Version 22H2) New , Windows 11 2022 Update (Version 22H2) New , Windows 11 , Windows 10 (November 2021 Update) , Windows 10 (May 2021 Update) , Windows 10 (October 2020 Update) , Windows 10 (May 2020 Update) , Windows 8.1 , Windows 7

Mac

macOS Ventura New , macOS Monterey , macOS Big Sur , macOS Catalina , macOS Mojave , macOS High Sierra (10.13) , macOS Sierra‎ (10.12)

iOS

iPadOS 16 New , iOS 15 , iPadOS 15 , iPadOS 14 , iOS 14 , iPadOS 13 , iOS 12 , iOS 11 , iOS 10
