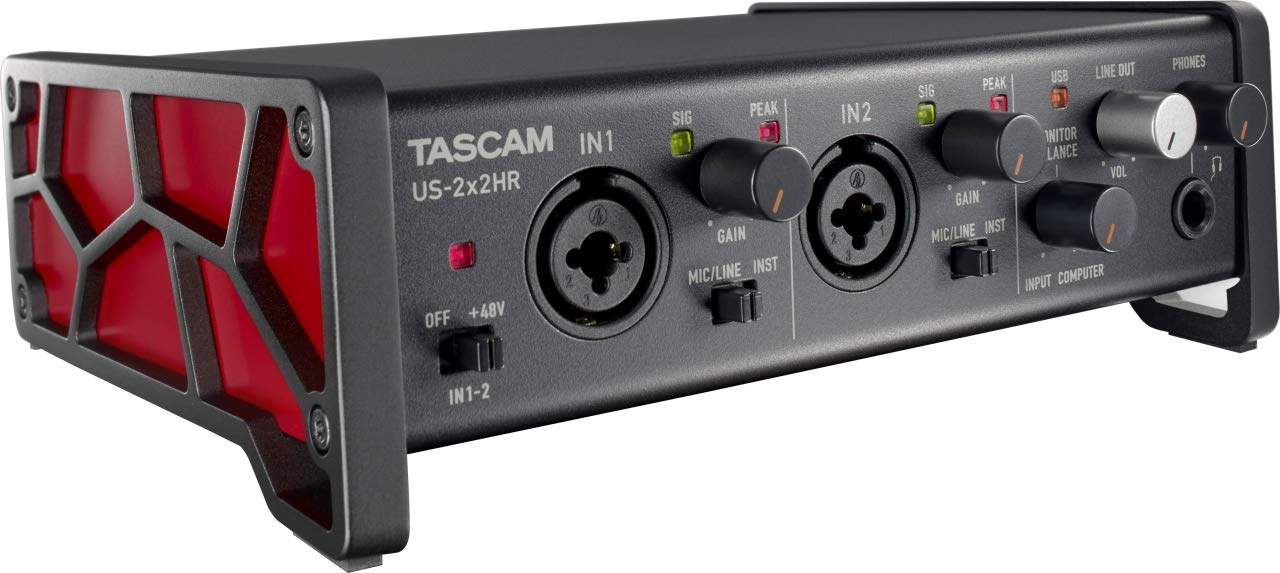

Tascam US-2x2HR
Tascam US-2x2HR - Image 2
Tascam US-2x2HR - Image 3
Tascam US-2x2HR - Image 4
Tascam US-2x2HR - Image 5

Tascam US-2x2HR

Rp3.500.000

Add to wishlist
SKU: TSCM-US-2X2HR Categories: , Tags: , , ,

Description





2Mic, 2IN/2OUT High Resolution Versatile USB Audio Interface

US-2x2HR

For music production, podcast and live streaming creators





2 combo jack mic/line inputs with guitar input support audio interface with implemented MIDI IN/OUT ports. Equipped loopback function and OBS support makes this interface applicable for podcasts and live streaming. The new US-2x2HR offers simple and intuitive operation plus sophisticated looks, a rich assortment of software bundles, and improved audio performance with 192 kHz support, thanks to the newly improved audio circuit.

Spec description

Sampling frequency44.1k/48k/88.2k/96k/176.4k/192k Hz
Quantization bit rate24bit
Analog audio inputs
MIC ININ 1 / IN 2
ConnectorXLR-3-31(1:GND, 2:HOT, 3:COLD), BALANCED
Input impedance2.2k ohms
Maximum input level
(GAIN:MIN)		+9dBu (2.183Vrms)
Gain56dB
INST ININ 1 / IN 2
Connector6.3mm(1/4″)TS-jack(T:HOT, S:GND), UNBALANCED
(When set to “INST” at MIC/LINE INST switch)
Input impedance1M ohms or more
Maximum input level
(GAIN:MIN)		+10dBV(3.162Vrms)
Gain56dB
LINE ININ 1 / IN 2
Connector6.3mm(1/4″)TRS-jack(T：HOT, R：COLD, S：GND), BALANCED
(When set to “MIC/LINE” at MIC/LINE INST switch)
Input impedance10k ohms
Maximum input level
(GAIN:MIN)		+20dBu(7.746Vrms)
Gain56dB

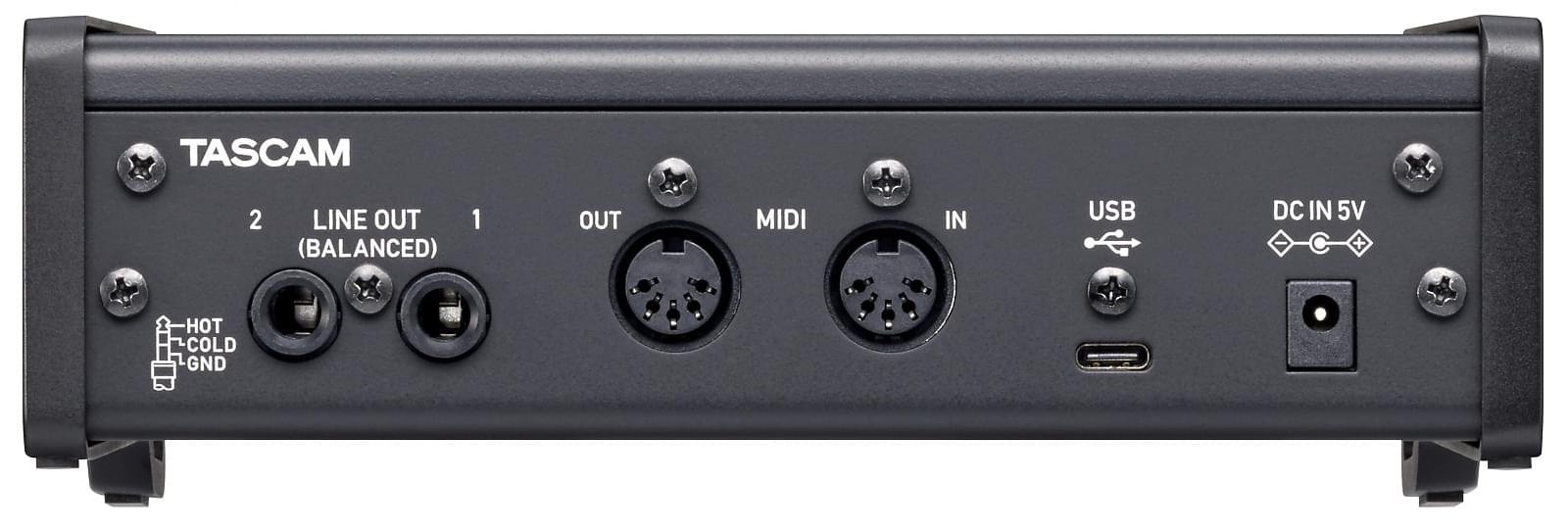

Analog audio outputs
LINE OUT1-2
Connector6.3mm(1/4″)TRS-jack(T：HOT, R：COLD, S：GND), BALANCED
Output impedance210 ohms
Nominal output level+4dBu (1.228Vrms)
Maximum output level+20dBu (7.746Vrms)
PHONES
Connector6.3mm(1/4″) stereo phone jack
Maximum output level18mW+18mW or more
(THD+N 0.1% or less, 32ohms loaded)
Output impedance66ohms
Working impedance16ohms to 250ohms
MIDI IN /OUT
ConnectorDin 5-pin
FormatStandard MIDI format
USB
ConnectorUSB Type-C
FormatUSB2.0 HIGH SPEED (480Mbps)
Power
When connected PCUSB bus powered
AC Adapter (TASCAM PS-P520E, sold separately)
When connected iOS/iPadOSAC Adapter (TASCAM PS-P520E, sold separately)
Power consumption1.75W
Dimensions186(W) × 65(H) × 160(D)mm (including protrusions)
Weight2.43lb (1.1kg)
Operating temperature5 to 35°C
AccessoriesUSB cable (Type-A to Type-C), Set of DAW software installation guides, Set of DAW plug-in software installation guides, Owner’s Manual (including warranty)



Audio performance

Mic amp EIN (equivalent input noise)-128dBu or lower
Frequency response
MIC / LINE IN
44.1k/48k Hz20Hz to 20kHz, +0dB/-0.4dB(JEITA)
88.2k/96k Hz20Hz to 40kHz, +0dB/-0.4dB(JEITA)
LINE OUT
44.1k/48k Hz20Hz to 40kHz, +0.2dB/-0.1dB(JEITA)
88.2k/96k Hz20Hz to 40kHz, +0.2dB/-0.4dB(JEITA)
THD + N0.0013% (MIC IN, 1kHz sine wave, -5dBFS input, GAIN knob at minimum, 20kHz SPCL LPF)
0.0011% (LINE IN, 1kHz sine wave, -5dBFS input, GAIN knob at minimum, 20kHz SPCL LPF)
0.0012% (LINE OUT, 1kHz sine wave, -4dBFS input, MONITOR knob at maximum, 20kHz SPCL LPF)
S/N ratio110dB (MIC IN, GAIN knob at minimum, 20kHz SPCL LPF+A-Weight)
108dB (LINE IN, GAIN knob at minimum, 20kHz SPCL LPF+A-Weight))
110dB (LINE OUT, MONITOR knob at maximum, 20kHz SPCL LPF+A-Weight)
Crosstalk95dB or more (MIC/LINE IN to LINE OUT, 1kHz sine wave, GAIN knob at minimum)



Computer system requirements

Windows
Compatible computersWindows computer with a USB 2.0 (or higher) port
CPU type/speed2GHz or faster dual core processor (x86)
Memory2GB or more
DriverASIO ASIO2.0, WDM, MIDI
Mac
Compatible computersMac with a USB 2.0 (or higher) port
CPU type/speed2GHz or faster dual core processor
Memory2GB or more
DriverCore Audio, Core MIDI

* Verified with Intel and Apple Silicon (M1 and M2) hardware

iOS/iPadOS divice
DriverCore Audio

* To connect an iOS device that has a Lightning connector, a genuine Apple Lightning to USB Camera Adapter (sold separately) is necessary.



Supported OS’

Windows

Windows 10 2022 Update (Version 22H2) New , Windows 11 2022 Update (Version 22H2) New , Windows 11 , Windows 10 (November 2021 Update) , Windows 10 (May 2021 Update) , Windows 10 (October 2020 Update) , Windows 8.1 , Windows 7

Mac

macOS Ventura New , macOS Monterey , macOS Big Sur , macOS Catalina , macOS Mojave , macOS High Sierra (10.13)

iOS

iPadOS 16 New , iOS 15 , iPadOS 15 , iPadOS 14 , iOS 14 , iPadOS 13 , iOS 13 , iOS 12
