EV Sx Series

CALL

Type Clear

Description

Sx portable passive loudspeakers

  • Lightweight durable composite enclosures
  • Sonically superior bi-amplified integrated amplifiers
  • Mic and line inputs
  • 1.75“ DH3 compression drivers
  • DL woofers
  • Numerous accessories for mounting and suspending
  • Available covers

The SX series includes some of the most popular loudspeaker designs in history. SX loudspeakers offer the tour-proven performance and reliability for which EV is known. A versatile range of speaker configurations and lightweight enclosures covers applications in commercial sound , pro music, club sound, and performance and sports venues. In live performance, the SX line can handle tasks such as front-of-house, side fills, delay lines, or stage monitors. For installed sound, easy mounting and multiple weather-ready versions provide flexible system configuration for both indoor and outdoor venues. With high power-handling, great coverage, and smooth, consistent frequency response, cost-effective SX loudspeakers are the hard-working, easy-setup solution to your installation and portable system needs.

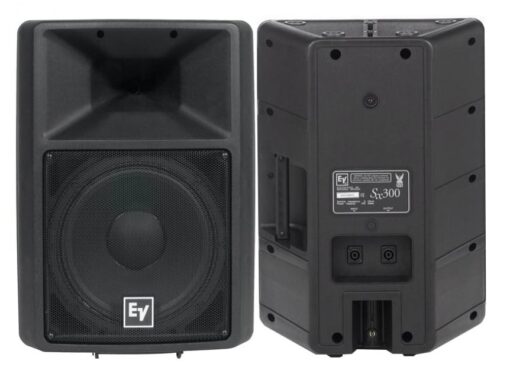

Sx300E

12″ passive loudspeaker

  • Compact, portable sound reinforcement
  • Designed for use alone or in arrays
  • Cast-frame DL12BFH woofer
  • 1.25-inch DH3/2010A titanium HF compression driver
  • 65º x 65º Constant-directivity Varipath horn
  • Ring-Mode Decoupling (RMD) for increased intelligibility
  • Power handling: 300 W continuous, 1200 W peak
  • Dual Neutrik Speakon(R) high-current connectors
  • Trapezoidal black or white polypropylene enclosure
  • Rubber feet and mating sockets for stacking
  • Integral handles, pole mount



Specifications

Frequency Range (-10 dB)50 – 20000kHz
WeatherizedNo
FlyingYes

More Specifications

Minimum Impedance
Nominal Impedance (Passive)
HF Transducer1.25-inch DH3/2010A
Speaker TypeFull-Range, Mid-High, Two-Way
Woofer Size12inch
Powered or PassivePassive
Max. SPL/1m (calc)²131/123dB (Low Z/100V)
Coverage (Nominal -6 dB) H65° (Const.-dir. horn)
LF Transducer12-inch DL12BFH
Coverage (Nominal -6 dB) V65° (Const.-dir. horn)
System Power Handling (Continuous/Program/Peak)300/1200Watts (Long-Term/Short-Term)
Crossover Frequency1500Hz
Enclosure MaterialCopolymer Composite
Available ColorBlack or white
Sensitivity 1 W/1 m99dB
Height23.07″ (586mm)
Width16.89″ (429mm)
Internal CrossoverYes
Depth12.28″ (312mm)
Weight Net39.02lbs (17.7kg)
FamilySx
Directivity Index11.1dB (+2.4/-4.1 dB)
Chassis Size304.8 mm
Axial Sensitivity (SPL, 1 W @ 1 m)99dB
Input Connections2 four-pin Speakon

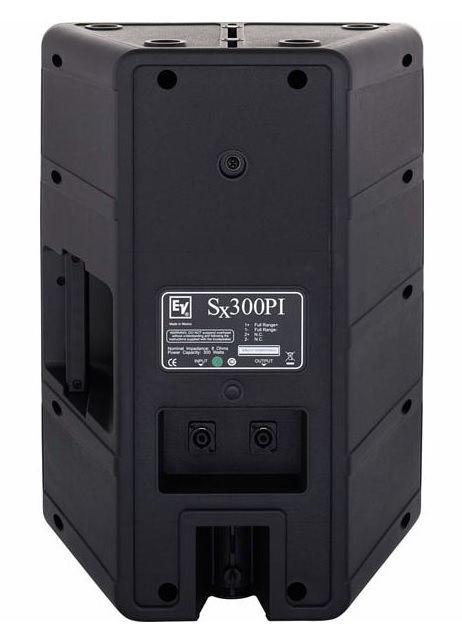

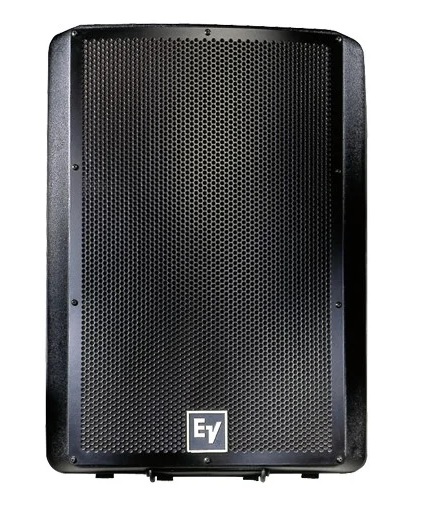

Sx300PIWeather‑resistant 12″ 2‑way passive full‑range loudspeaker

  • Sx300 performance with enhanced weather-resistance
  • PIX version has multi-tap transformer for 70 or 100 V use
  • Ideal for installation, alone or in arrays
  • 1.25-inch DH3/2010A titanium HF compression driver
  • 65º x 65º Constant-directivity Varipath horn
  • Ring-Mode Decoupling (RMD) for increased intelligibility
  • Power handling: 300 W continuous, 1200 W peak
  • Neutrik Speakon(R) (PI) or Phoenix (PIX) connectors
  • Trapezoidal enclosure of high-impact polypropylene
  • Rubber feet and mating sockets for stacking
  • Integral handles, pole socket, suspension points
  • Available in black or white



Specifications

Frequency Range (-10 dB)50 – 20000kHz
WeatherizedYes
FlyingYes

More Specifications

Minimum Impedance
Nominal Impedance (Passive)
HF Transducer1.25-inch DH3/2010A
Speaker TypeFull-Range, Two-Way
Woofer Size12inch
Powered or PassivePassive
Max. SPL/1m (calc)²131/123dB (Low Z/100V)
Coverage (Nominal -6 dB) H65° (Const.-dir. horn)
Coverage (Nominal -6 dB) V65° (Const.-dir. horn)
LF Transducer12-inch DL12BFH
Power Rating300W
System Power Handling (Continuous/Program/Peak)300//1200Watts
Crossover Frequency1500Hz
Enclosure MaterialPolypropylene Composite
Available ColorBlack or white
Sensitivity 1 W/1 m99dB
Height23.07″ (586mm)
Width16.89″ (429mm)
Internal CrossoverYes
Depth12.28″ (312mm)
Weight Net39.02lbs (17.7kg)
FamilySx
Axial Sensitivity (SPL, 1 W @ 1 m)99dB
Input Connections2 four-pin Speakon
Directivity Index11.1dB (+2.4/-4.1 dB)
Chassis Size12″ (304.8mm)

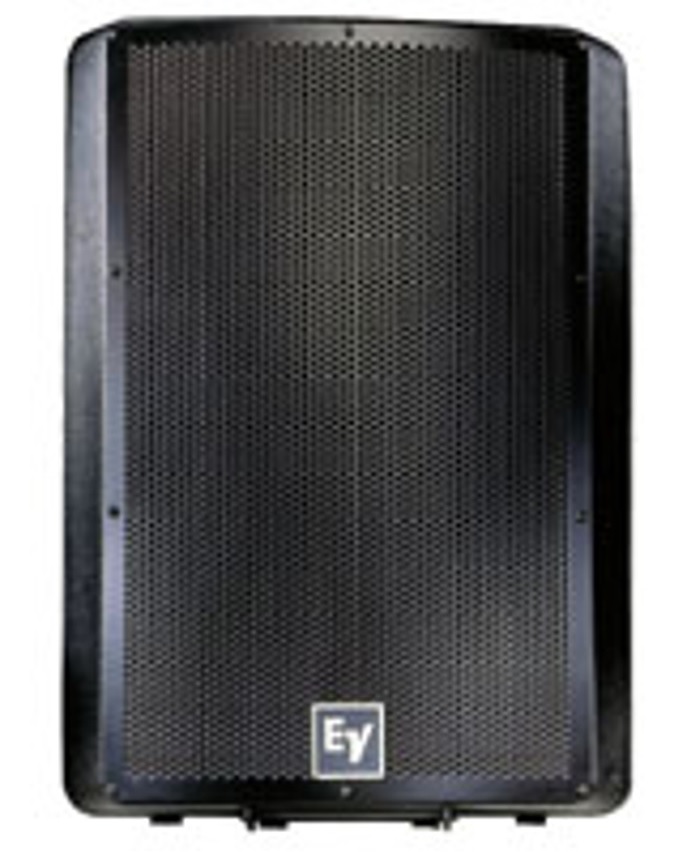

Sx300PIX
Weather‑resistant 12″ 2‑way passive full‑range loudspeaker

  • Sx300 performance with enhanced weather-resistance
  • PIX version has multi-tap transformer for 70 or 100 V use
  • Ideal for installation, alone or in arrays
  • 1.25-inch DH3/2010A titanium HF compression driver
  • 65º x 65º Constant-directivity Varipath horn
  • Ring-Mode Decoupling (RMD) for increased intelligibility
  • Power handling: 300 W continuous, 1200 W peak
  • Neutrik Speakon(R) (PI) or Phoenix (PIX) connectors
  • Trapezoidal enclosure of high-impact polypropylene
  • Rubber feet and mating sockets for stacking
  • Integral handles, pole socket, suspension points
  • Available in black or white

Specifications

Frequency Range (-10 dB)50 – 20000kHz
WeatherizedYes
FlyingYes

More Specifications

Minimum Impedance
Nominal Impedance (Passive)
HF Transducer1.25-inch DH3/2010A
Speaker TypeFull-Range, Mid-High, Two-Way
Woofer Size12inch
Powered or PassivePassive
Max. SPL/1m (calc)²131/123dB (Low Z/100V)
Coverage (Nominal -6 dB) H65° (Const.-dir. horn)
LF Transducer12-inch DL12BFH
Coverage (Nominal -6 dB) V65° (Const.-dir. horn)
Power Rating300W
System Power Handling (Continuous/Program/Peak)300//1200Watts (Long-Term/Short-Term)
Crossover Frequency1500Hz
Enclosure MaterialPolypropylene Composite
Available ColorBlack or white
Sensitivity 1 W/1 m99dB
Height23.07″ (586mm)
Width16.89″ (429mm)
Depth12.28″ (312mm)
Internal CrossoverYes
Weight Net39.02lbs (17.7kg)
FamilySx
Directivity Index11.1dB (+2.4/-4.1 dB)
TransformerYes
Chassis Size12″ (304.8mm)
Axial Sensitivity (SPL, 1 W @ 1 m)99dB
Input Connections2 four-pin Speakon
