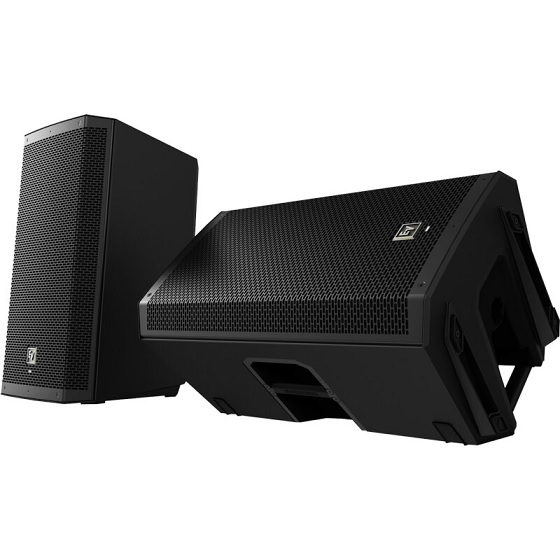

Portable Speaker Families The most powerful family in portable sound.
Each member of the award-winning Electro-Voice portable loudspeaker family is designed and engineered in the USA to deliver best-in-class performance across every detail. The components inside EV loudspeakers are manufactured and tested to the industry’s highest standards, to ensure years of superior sound quality and reliability. EV stands apart from other portable speaker manufacturers because we also build bigger systems for concert sound – a pro audio heavyweight with a proven track record on the world stage. Everything we’ve learned at this most competitive and critical level of the industry is condensed into our compact systems to bring you equally uncompromising performance at a smaller scale. No other equivalently priced speaker will sound as good, work as hard, or last as long.
Whatever the application, there’s an EV speaker with a set of features to precisely fit your needs and your budget: from the unbeatable value and power-to-weight ratio offered by ZLX up to the benchmark performance and advanced technology of our top-of-the-line ETX and EVOLVE column loudspeakers.

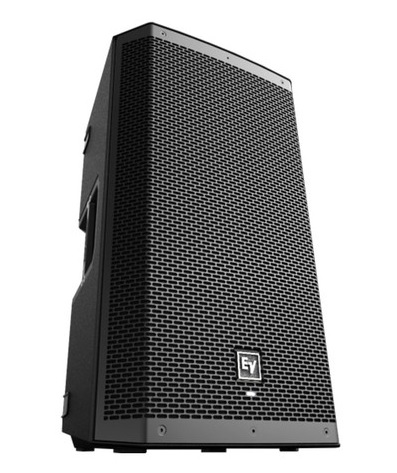

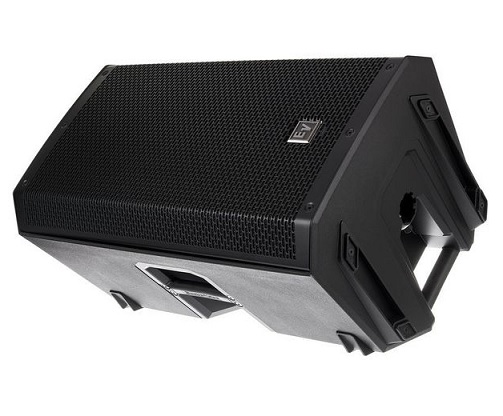

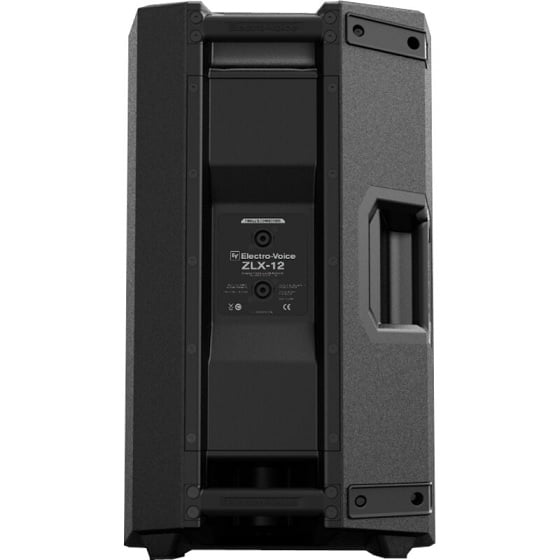

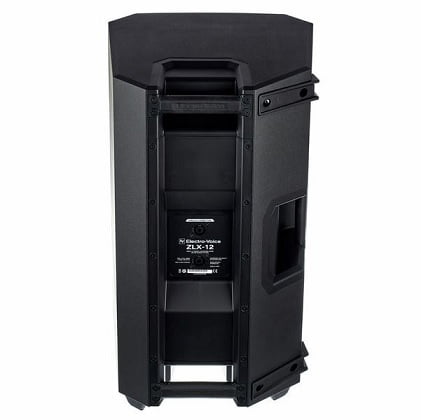

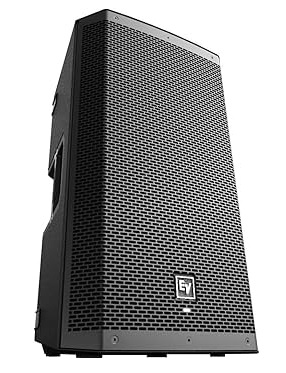

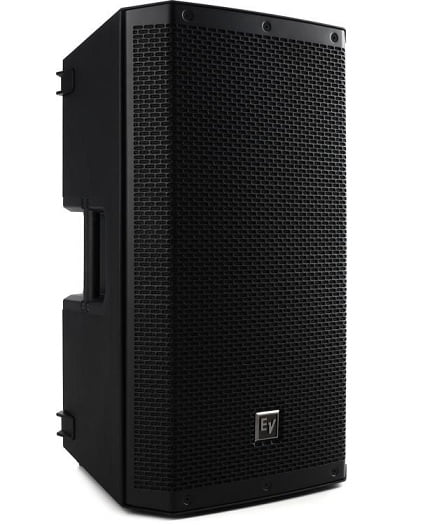

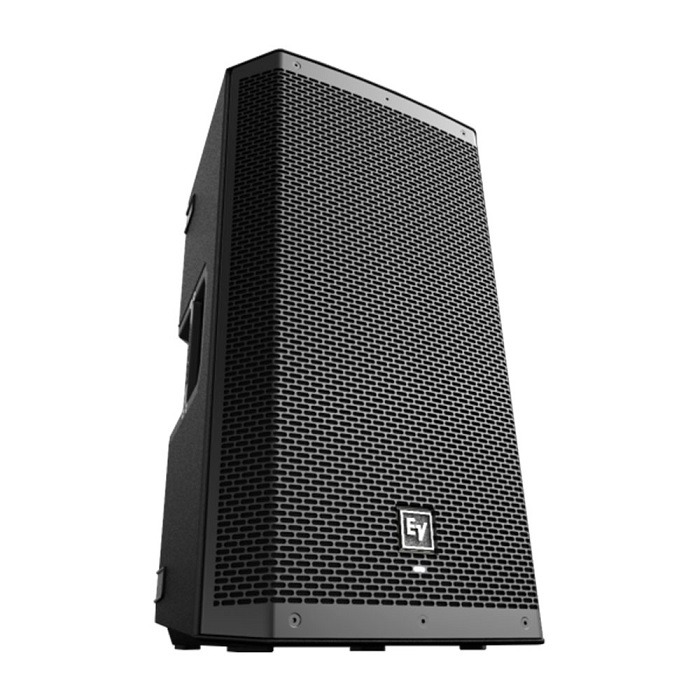

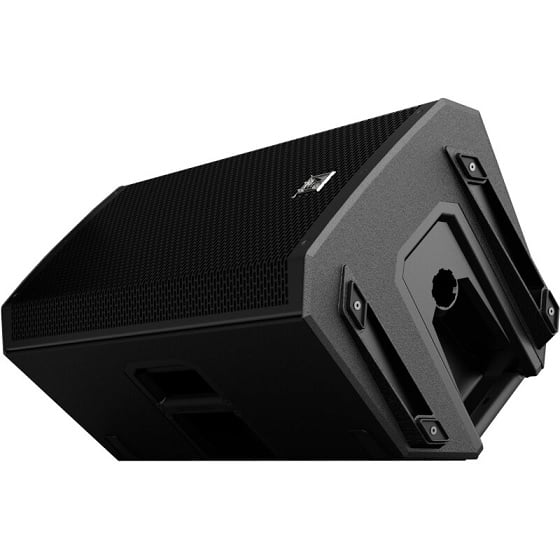

ZLX-12
12″ passive loudspeaker
12” woofer for low-end punch in a compact enclosure and 1.5” high-frequency
titanium compression driver
55 Hz – 20 kHz frequency range
250 W continuous and 1000 W peak power handling
95 dB SPL sensitivity; 125 dB max SPL.8 lbs (14.9 kg)

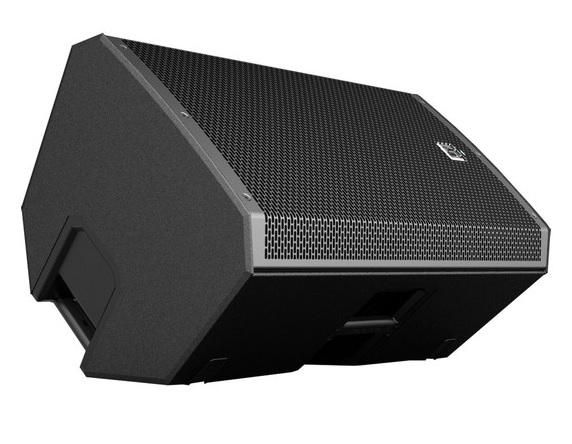

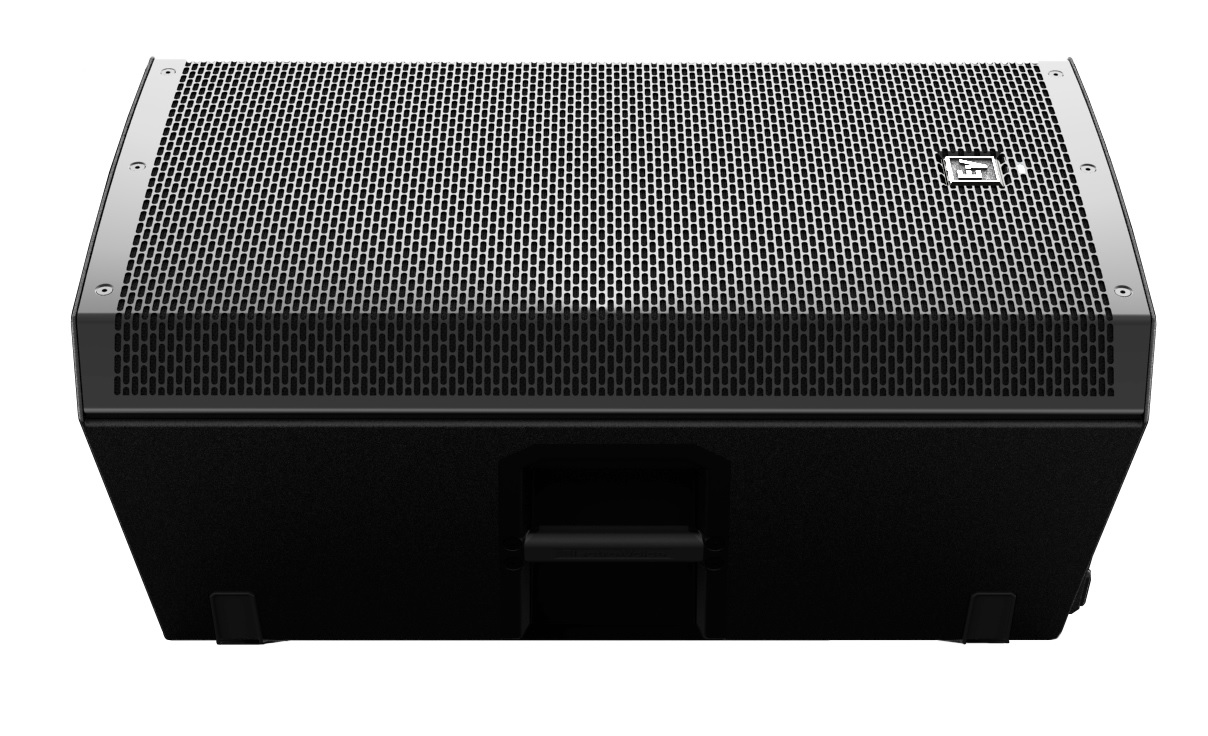

Big sound doesn’t need to take up a lot of space. Ideal for main loudspeaker or monitor wedge duties, the ZLX-12 offers the ultimate combination of performance and portability – and always looks great on stage.
Specifications
Frequency Response
82 Hz – 18 kHz¹
Frequency Range
55 Hz – 20 kHz
Axial Sensitivity
95 dB
Fewer Specifications
Maximum SPL
125 dB
Recommended HP Frequency
40 Hz
Coverage (Hort. x Vert.)
90° x 60°
Power Handling
250 Watts Continuous, 1000 Watts Peak
LF Transducer
EVS-12K, 300 mm (12 in) Woofer
HF Transducer
DH-1K
Crossover Frequency
2.1 kHz
Nominal Impedance
8 Ω
Minimum Impedance
7 Ω
Connectors
Dual NL4
Enclosure
Polypropylene
Grille
18 Gauge Steel with Black Powder Coat
Dimensions
(H x W x D) 610 mm x 356 mm x 356 mm (24 in x 14 in x 14 in)
Net Weight
14.9 kg ( 32.8 lb)
Shipping Weight
18.0 kg ( 39.6 lb)

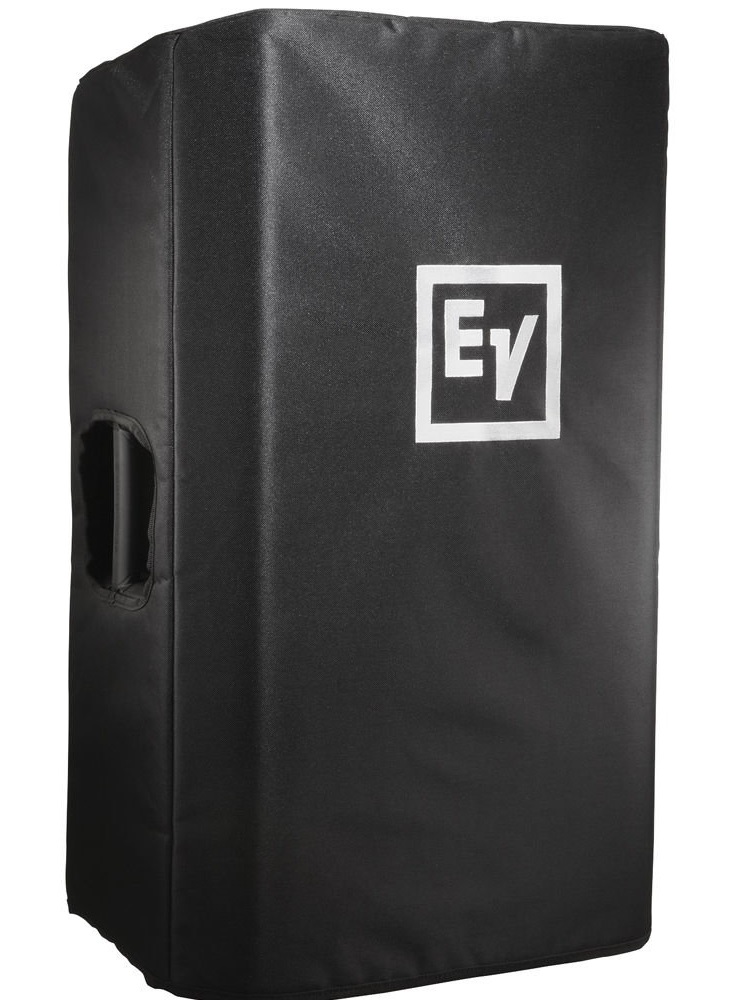

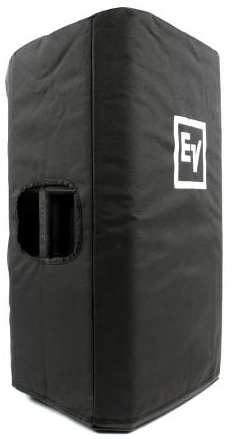

ZLX-12-CVR
Cover for the zlx‑12, zlx‑12p & zlx‑12bt

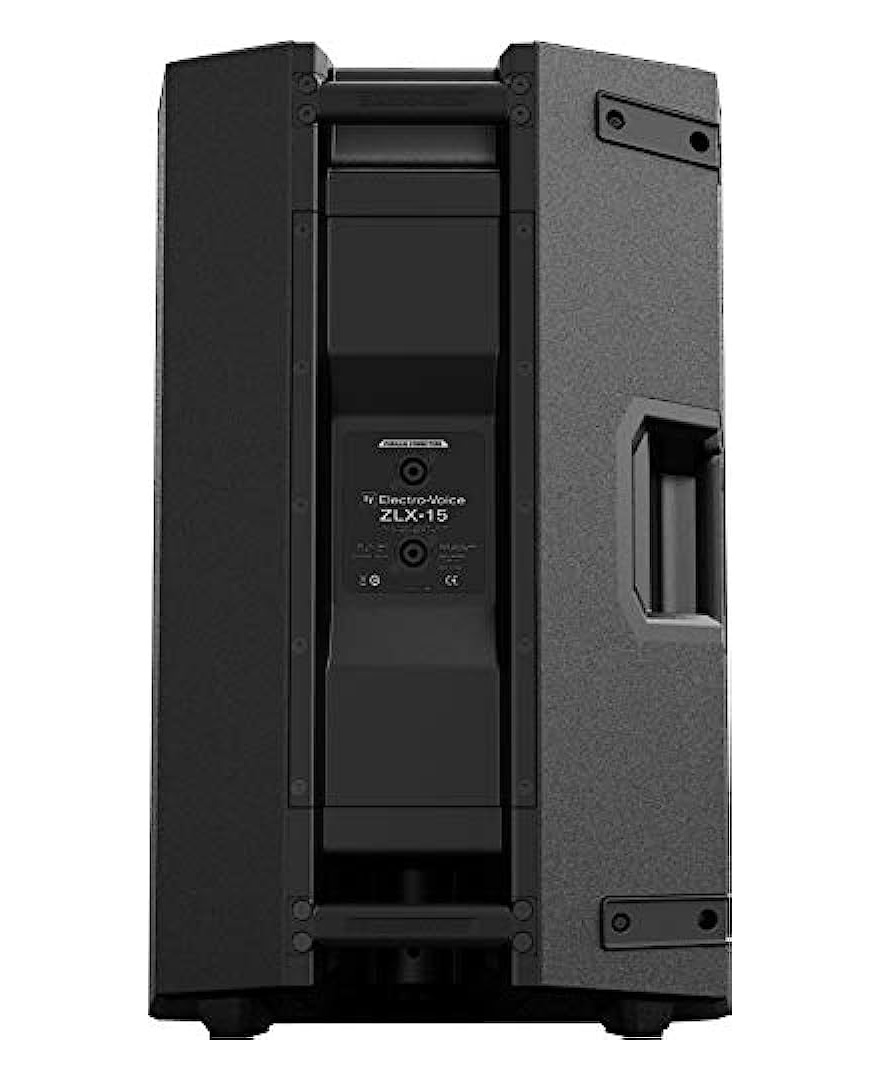

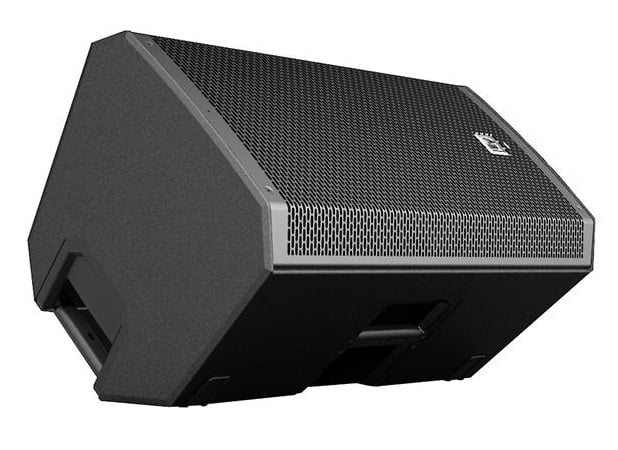

ZLX-15
15″ passive loudspeaker
15” woofer for extended low-frequency response and 1.5” high-frequency titanium compression driver
44 Hz – 20 kHz frequency range
250 W continuous and 1000 W peak power handling
96 dB SPL sensitivity; 126 dB max SPL
36.5 lbs (16.6 kg)
The ZLX-15 gives you the confidence of the industry’s most trusted components – engineered to exacting standards to bring exceptional EV audio quality for larger applications, with or without a subwoofer.
Specifications
Frequency Response
56 Hz – 18 kHz¹
Frequency Range
44 Hz – 20 kHz
Axial Sensitivity
96 dB
Fewer Specifications
Maximum SPL
126 dB
Recommended HP Frequency
40 Hz
Coverage (Hort. x Vert.)
90° x 60°
Power Handling
250 Watts Continuous, 1000 Watts Peak
LF Transducer
EVS-15L, 380 mm (15 in) Woofer
HF Transducer
DH-1K
Crossover Frequency
1.7 kHz
Nominal Impedance
8 Ω
Minimum Impedance
7 Ω
Connectors
Dual NL4
Enclosure
Polypropylene
Grille
18 Gauge Steel with Black Powder Coat
Dimensions (H x W x D)
685 mm x 423 mm x 383 mm (27 in x 17 in x 15 in)
Net Weight
16.6 kg (36.5 lb)
Shipping Weight
22.0 kg (48.3 lb)
ZLX-15-CVR
Cover for the zlx‑15, zlx‑15p & zlx‑15bt

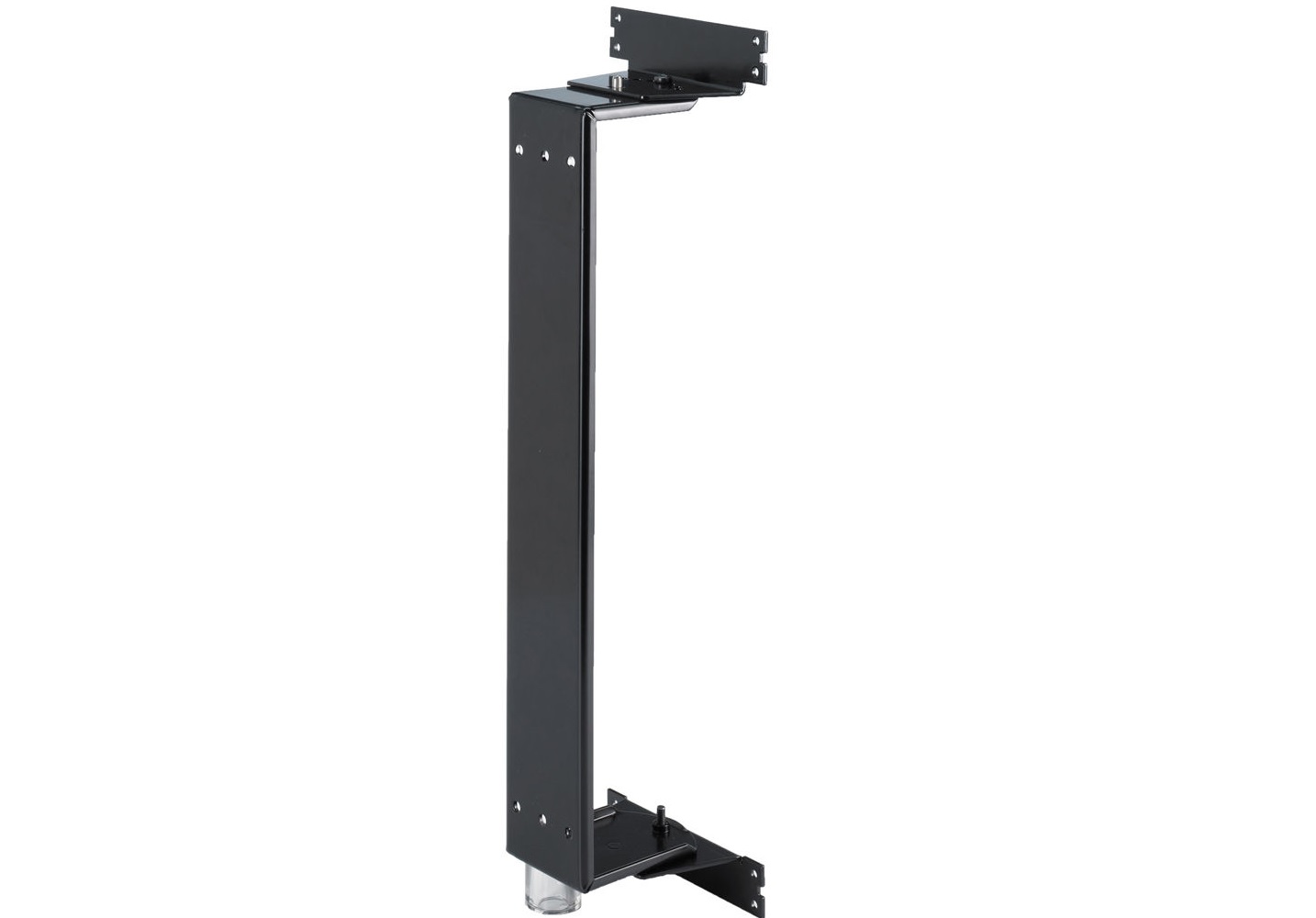

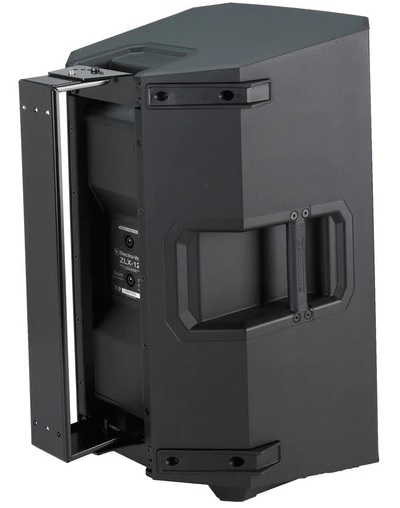

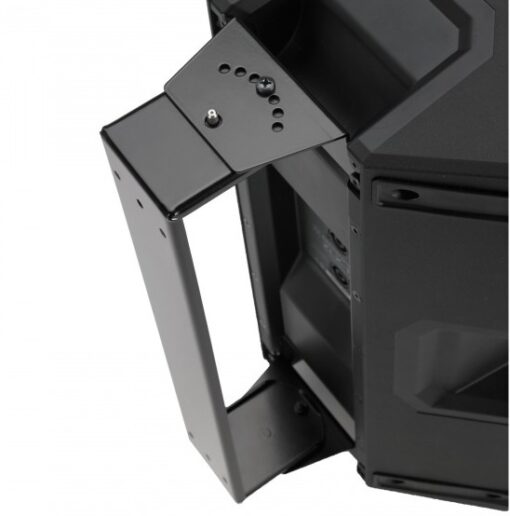

ZLX-BRKT
Bracket for zlx‑12, zlx‑12p, zlx‑12bt, zlx‑15, zlx‑15p & zlx‑15bt
