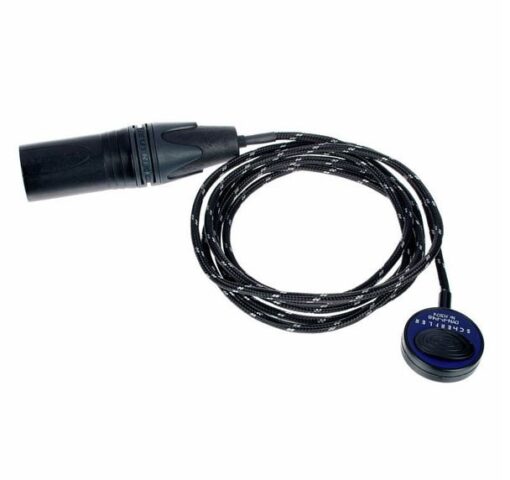

SCHERTLER DYN P48 Series contact microphones are high-quality transducers designed for
professional applications. Suitable for use on a variety of instruments in both live/amplified and
studio environments, these fully-balanced, active, dynamic contact microphones can be safely
applied to even the most valuable of instruments using the special adhesive putty provided.
The microphones can be quickly transferred between instruments during performances or recording
sessions. Once in place, their lightweight design makes them unobtrusive to the performer.
A balanced XLR connector enables direct connection to a microphone input on a mixing console, or
a full range amplification system. (Note: these contact microphones require 22 to 48 VDC phantom
power, with the exception of the passive DYN UNI.) The torsion-resistant, Kevlar-reinforced cable
is designed to withstand the rigors of daily use while delivering best possible performance results.
SCHERTLER DYN P48 Series microphones all feature built-in Class-A preamps and advanced filtering
technology that enables an optimum frequency response to be obtained from each individual
instrument.
To make the most of your microphone’s capability and to ensure trouble-free operation, please
read this manual carefully before using the mic for the first time. We also advise keeping the
manual for future reference.
SCHERTLER DYN P48 Series: Made in Switzerland
Is mounted with a special adhesive putty to the instrument
Requires phantom power (min. 22 V DC)
Output impedance: 4.7 kOhm @ 1 KHz
Frequency range: 20 – 20,000 Hz
Dynamic range: 139 dB (typically 145 dB)
Sensitivity on the instrument: ca. -30 dB
Theoretical sensitivity: -62 dB / @ 1um ampl.
Mechanical decoupling: Butterworth 2nd order, Q=6
Temperature range: -20° C up to +70° C
Made in Switzerland

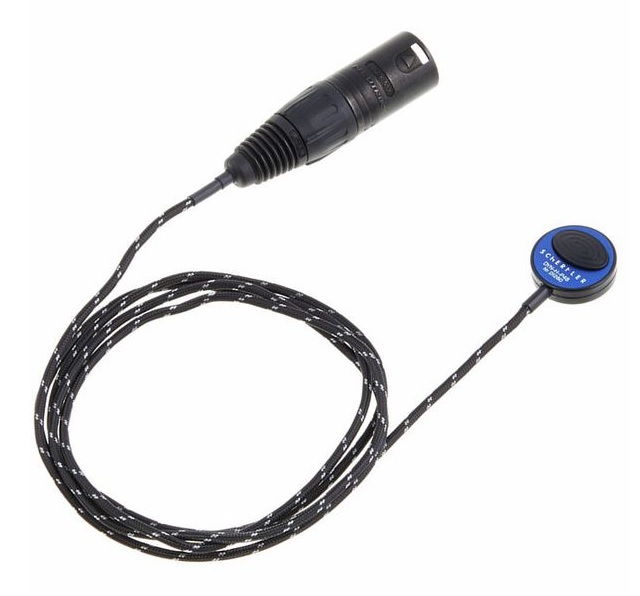

Contact microphone for Handpan
Schertler Dyn-HP-P48 Handpan Contact Microphone, active dynamic contact microphone for handpan, to be mounted on the intrument with adhesive putty, needs phantom power, output impedance 280 Ohm @ 1 KHz,frequency response 20 Hz to 16 kHz, dynamic range 139 dB, temperature range -20° C to +70° C, minimum operating voltage 22 VDC, made in Switzerland.

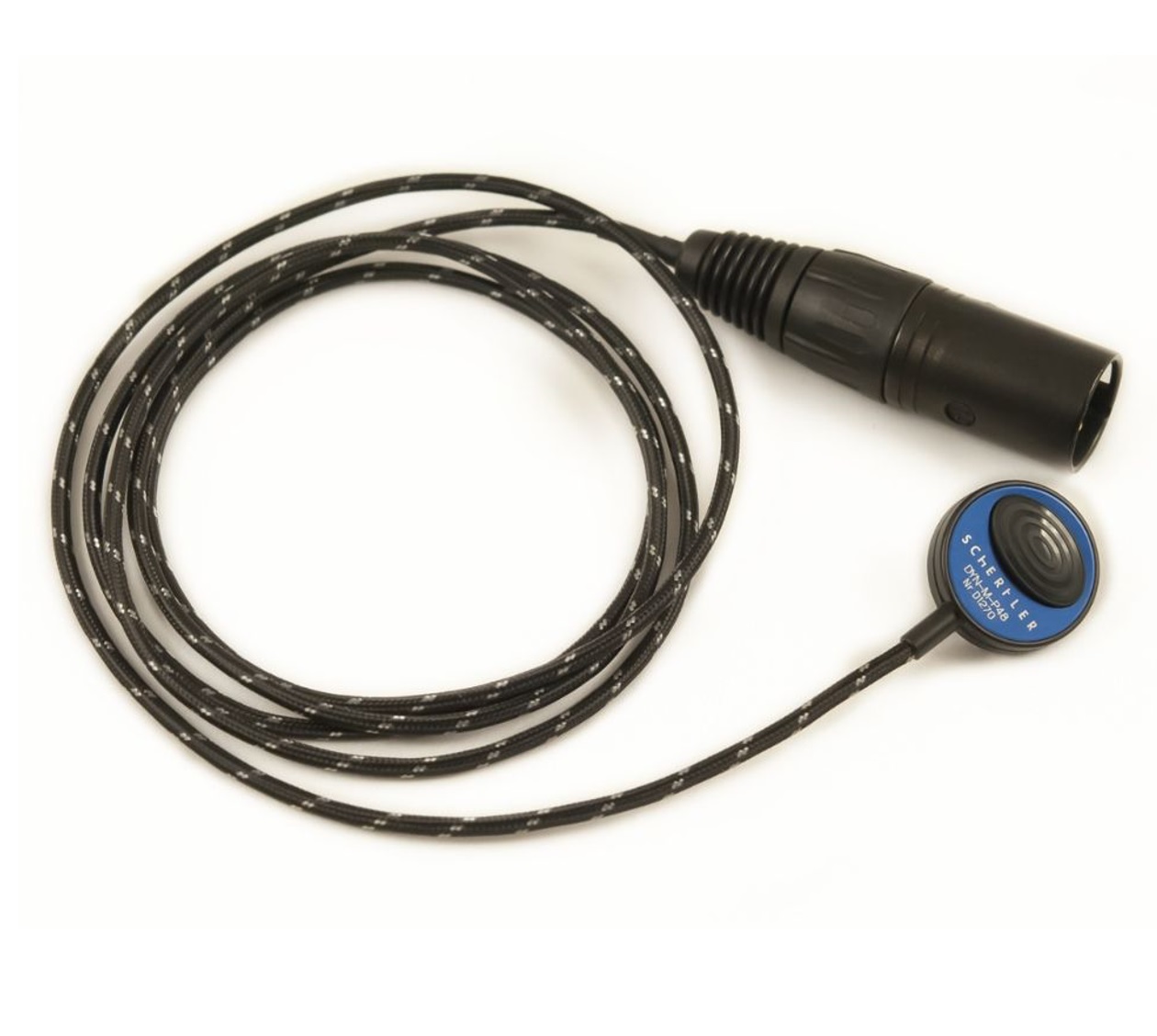

Contact microphone for Mandolin
Output impedance 4.7 Kohm @ 1 KHz
Frequency Response 20 Hz to 20 kHz
Dynamic range 139 dB, 145 dB typical
Sensitivity (on instrument) ca. -30 dB
Sensitivity (theoretical) -62 dB/@ 1um ampl.
Mechanical decoupling Butterworth 2nd order, Q=6
Temperature range -20° C to +70° C
Minimum operating voltage 22 VDC
Active EQ Customized for each instrument
Electronics all Class-A
Contacts All hard gold plated 0.5 mm
Connection XLR balanced
Cable length 2.2m
The DYN UKE P48 is a fully-balanced, active, dynamic contact mirophone for ukulele.
Transducer Type : Electro-Dynamic moving coil active contact microphone
Mechanical decoupling : Butterworth 2nd order, Q-0.6
Frequency Response (@±3dB) – filtered : 20 to 16 kHz
Sensivity : ca -30 dBu
Piano Microphone
Fully balanced active dynamic contact microphone
Output impedance: 4.7 kOhm @ 1 kHz
Frequency range: 20 – 20000 Hz
Dynamic: 139 dB, 145 dB typical
XLR connector balanced
Cable length: 1.40 m
Made in Switzerland
The DYN GP P48 is a set of two active and fully balanced electrodynamic contact microphones for piano. The set also includes a padded bag and a special adhesive putty.
Transducer type: Electro-dynamic moving coil active contact microphone
Mechanical decoupling: Butterworth 2nd order, Q = 0.6 Frequency Response (@ ±3dB) – filtered*20 to 16 kHz – Sensitivity ca. -30 dBu
Dynamic range: 139 dB
Output impedance (@ 1 kHz): 4.7 kΩ
Operating voltage: 22 – 48 VDC
Built in preamp: Yes all Class-A
External preamp: No Contacts: All hard gold plated 0.5 mm
For fixed installations: No
Removable: Yes
Connection: XLR balanced Cable Length: 1.4 m Note: Output frequency response is filtered electronically to better match the specific application.

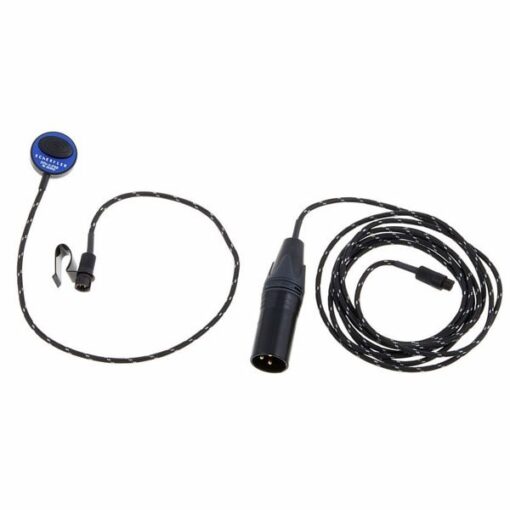

Contact Microphone for Violins
Active dynamic contact microphone for violins
Is mounted with adhesive paste onto the instrument
