Description

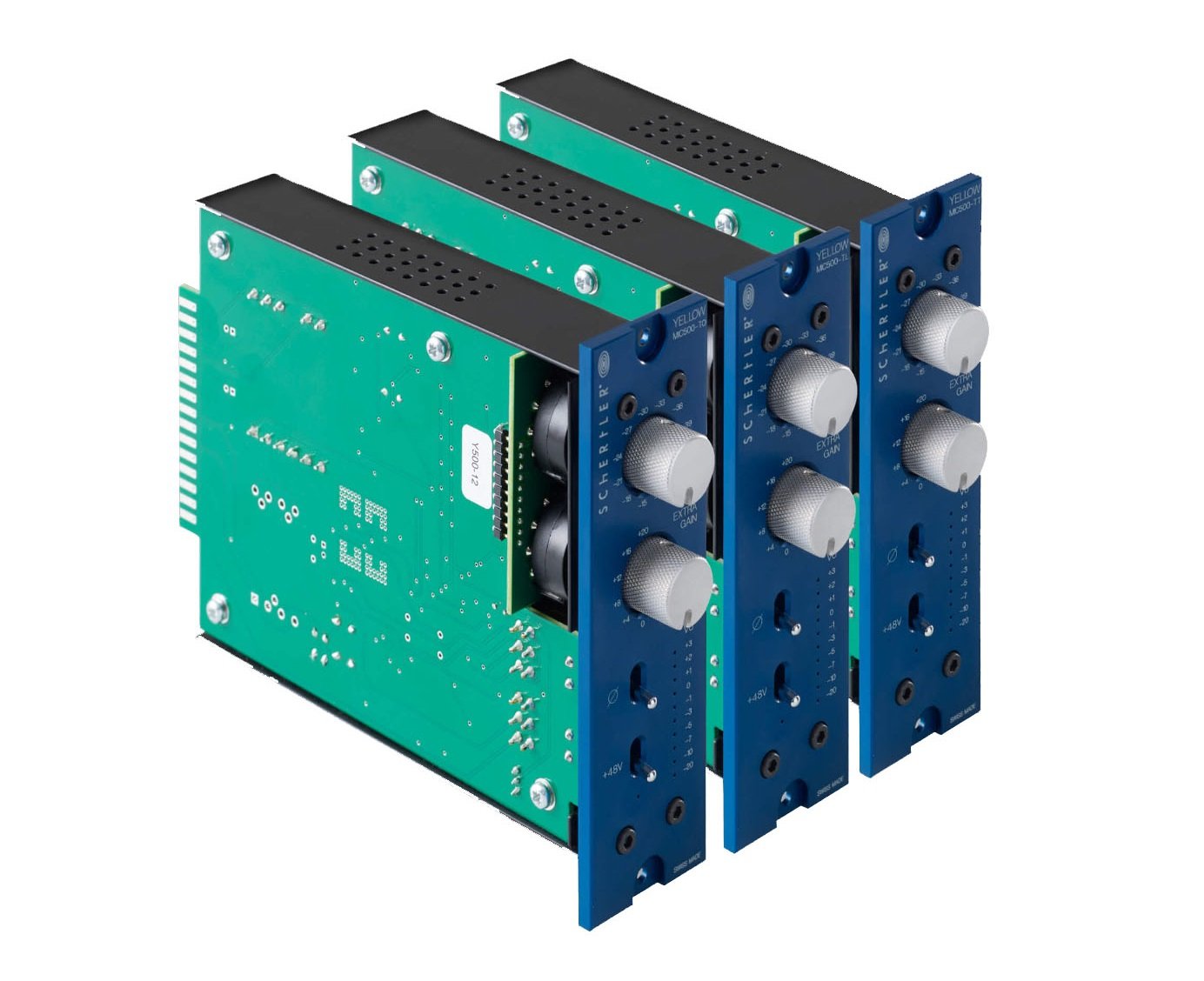

Yellow Mic 500 is a single-channel, Class-A, 500 series microphone preamp designed for user installation in a 500 series Lunchbox rack.
it is equipped with a 12-step rotary switch for adjusting input
Schertler Yellow Mic500 Preamp
Rp8.850.000 – Rp15.750.000
Schertler Y-MIC500-TL
The Schertler Yellow MIC500 TL is a single channel preamp built with class A components. It includes a 12 step rotary switch for adjusting input sensitivity, alongside an extra gain control for weak signals or low output sources. The 10 segment VU meter provides accurate readings for monitoring the signal. Includes Phantom power switch (+48v) and a two position phase reverse switch. A fully balanced signal path provides the best possible audio quality.
Features
No Negative Feedback (NFB) is applied for faster attack and improved slew rate. The YELLOW MIC500 simply slots into an available space in the Lunchbox rack and is secured to the chassis using supplied screws. The preamp is ready for instant use on power-up.
Specifications
- Input impedance: TL model: 1880 Ohm
- Output impedance: TL model: 70 Ohm
- Maximum input level: +8dBu (@1kHz ; THD<0,5%)
- Maximum output level: +18dBu (@1kHz ; THD<0,5%)
- Gain range: 15 68 dB
- Frequency response: 20Hz 20kHz +/ 0.5 dB
- Equivalent input noise (EIN): 128.7dB (150 Ohm ; @max gain)
- Distortion (THD+N): < 0,02 % (@1kHz ; 10 dBu)
- Power consumption: 84 mA DC
- Size & Weight: 170x134x37 mm ; 0,27 kg
- Conditions: Use in dry locations, 0°
Schertler Y-MIC500-TT
The Schertler Yellow MIC500 TT is a single channel preamp built into a 500 series sized unit with Class A components. The 12 step rotary switch and extra gain control allow for highly accurate input control so you can precisely set your gain with ease. This 500 pre-amp unit also has a 10 step VU meter with peak hold giving accurate monitoring for your sessions. A fully balanced signal path provides high quality audio output.
The Yello MIC500’s high quality electronics are contained within a totally shielded metal enclosure, while an anodized aluminium front panel provides intuitive access to its controls. These include a 12-step rotary switch for adjusting input sensitivity (in 3dB increments), plus an extra gain control for use in weak signal conditions or when connecting low output sources such as ribbon mics.
A full 10-segment VU meter with peak hold provides highly accurate signal monitoring. A two-position phase reverse switch and phantom power switch (+48V) are also included. Designed to offer the best possible audio quality, the YELLOW MIC500 has a fully balanced signal path with no capacitor over the entire path (except for the TT model). Only discrete electronics are used on the signal circuitry
Specifications
- Input impedance: TT model: 1300 Ohm
- Output impedance: TT model: 315 Ohm
- Maximum input level: +8dBu (@1kHz ; THD<0,5%)
- Maximum output level: +18dBu (@1kHz ; THD<0,5%)
- Gain range: 15 68 dB
- Frequency response: 20Hz 20kHz +/ 0.5 dB
- Equivalent input noise (EIN): 128.7dB (150 Ohm ; @max gain)
- Distortion (THD+N): < 0,02 % (@1kHz ; 10 dBu)
- Power consumption: 84 mA DC
- Size & Weight: 170x134x37 mm ; 0,27 kg
- Conditions: Use in dry locations, 0°

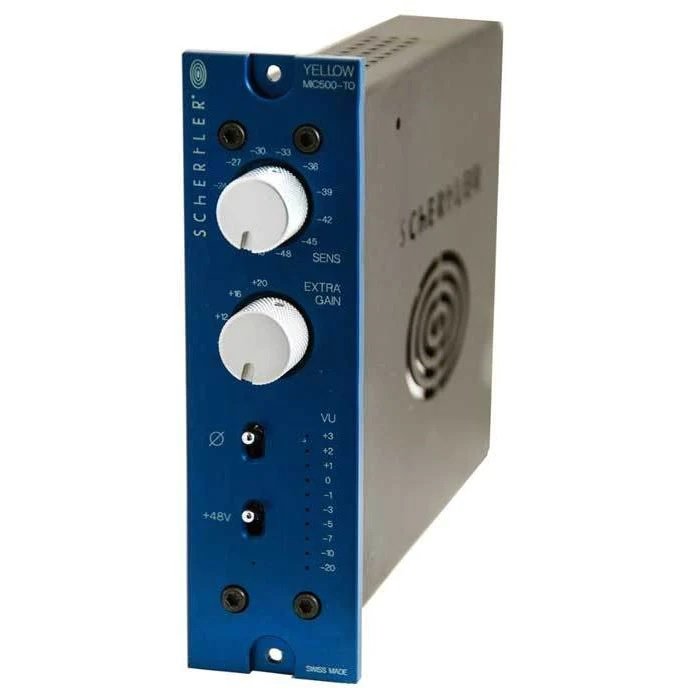

Schertler Y-MIC500-TO
The Schertler Yellow MIC500 TO is a single channel preamp, built with high quality Class A components. Built with a 10 segment VU meter with peak hold, this gives highly accurate signal monitoring. Included is a 12 step rotary switch for adjusting input sensitivity and an extra gain control switch for weak or low input signals. The MIC500 TO’s fully balanced signal path provides the highest quality audio.
Features
The Yellow MIC500 TO model offers a high-quality audio transformer from Lundhal on the output connection. No Negative Feedback (NFB) is applied for faster attack and improved slew rate. Two position phase reverse switch and phantom power (+48v).
Specifications
- Input impedance: TO model: 1880 Ohm
- Output impedance: TO model: 315 Ohm
- Maximum input level: +8dBu (@1kHz ; THD<0,5%)
- Maximum output level: +18dBu (@1kHz ; THD<0,5%)
- Gain range: 15 68 dB
- Frequency response: 20Hz 20kHz +/ 0.5 dB
- Equivalent input noise (EIN): 128.7dB (150 Ohm ; @max gain)
- Distortion (THD+N): < 0,02 % (@1kHz ; 10 dBu)
- Power consumption: 84 mA DC
- Size & Weight: 170x134x37 mm ; 0,27 kg
- Conditions: Use in dry locations, 0°
