HK Audio Elements Easy Base


Model Clear


HK Audio Elements

Audio is changing. It’s getting leaner, lighter, and lusher. ELEMENTS is the first system to combine the benefits of modern line-array technology with the convenience of ultra compact portable PAs. Discerning musicians, rental companies, DJs, installers and presenters at corporate events are sure to love this system’s look of understated elegance, not to mention its stellar performance.

Designed to grow as you go, there is an ELEMENTS PA well-suited for just about every occasion. The columnar mid/ high units deliver luscious sound with remarkable speech intelligibility all the way to the back row. And the active subwoofers provide plenty of low-end with more than enough juice left to power the mid / high units and subwoofer extensions.

ELEMENTS offers all the benefits of the most advanced speaker technology and none of the hassle that goes into connecting conventional systems’ cords. These PA systems are so compact that they can be transported in ordinary cars with room to spare. Thanks to their lightweight design, setting up is an exercise in convenience. A versatile Install Kit is available to bring the benefits of ELEMENTS’ great sound and look to users who want to put their PAs in place permanently.

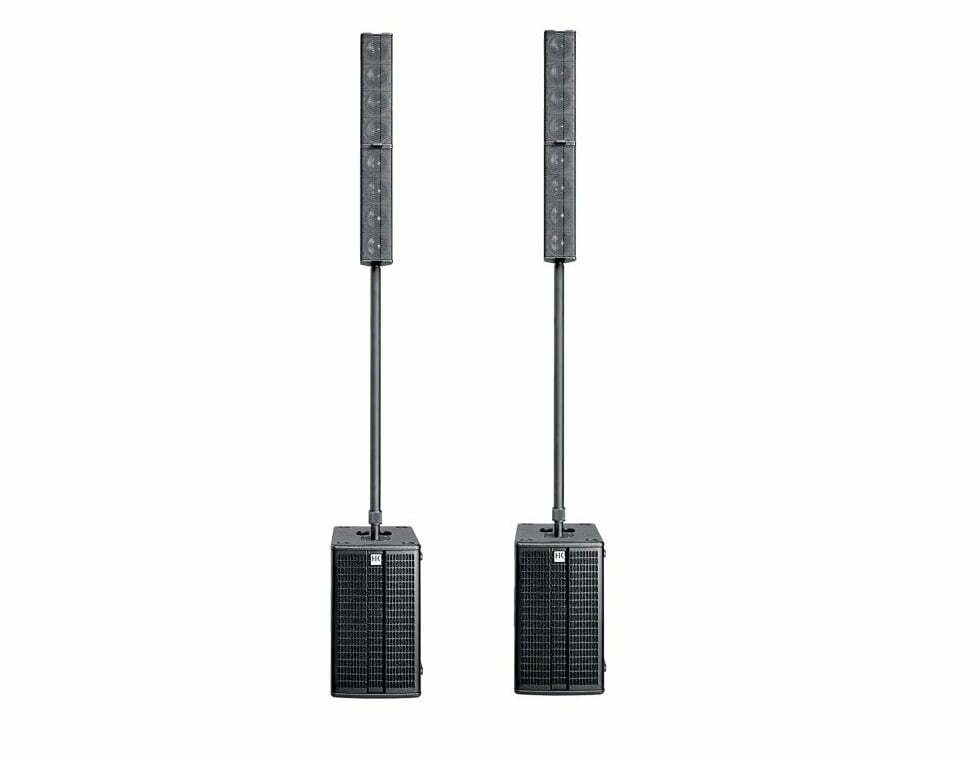

Easy Base

The ELEMENTS Easy Base PA gets the job done in many live situations. It’s a great choice if you are not planning to add on those wonderfully flexible ELEMENTS extensions later down the line. A mono Easy Base PA format is the no-fuss, no-muss solution for applications where you can do without stereo sound, for example, presentations and speeches at corporate events, ensemble performances and one-man bands. This set consists of the active E110 Sub A subwoofer paired with two E 435 mid/ high units and a speaker pole. It may be extended to a stereo PA simply by adding a second Easy Base set.



• Stylish design
• Audiences up to around 50
• Practically cordless
• Light and compact
• Mono set; stereo with two Easy Bases
• 5-year HK Audio warranty



EA 600

Housed in an enclosure that shares the same design as the mid/ high unit, the EA 600 amp module delivers 600 watts at 4 ohms. It can drive up to two passive E 110 Sub subwoofers or one passive subwoofer with up to two E 435 mid/ high units or one column with up to four mid/ high units. The power amp module is ventilated from the front. A rotary selector lets you choose a special EQ setting to match the number of connected E 435s and optimize the frequency response for a column of that height.



  • Class-D power amp with 600 watts output
  • Drives up to four mid/ high units, up to two subwoofers, or one passive subwoofer with two mid/ high units
  • Four EQ filter settings (variable to match the number of mid/ high units in one column
  • E-Connect bus
  • Exceedingly light weight (2.75 kg)



EF 45

The base accommodates the mid/ high units, amp module, and mounting pole. Its extendible feet ensure the mounted elements sit on a stable, secure platform.

• Stable system base with a small footprint
• Integrated E-Connect bus
• Two parallel NL4 ports
• 45-51 x 31 x 12.5 cm; 7.7 kg



These speaker poles are unlike any other. They enable simple, speedy setup for smaller configurations. Freely adjustable, they forward the signal to the top-mounted mid/ high units via the internal E-Connect coupler/ bus – no speaker cords necessary.

• Anodized aluminum with ring lock
• EP 1: Adjustable height from 95 to 160 cm
• EP 2: from 44 to 60.5 cm
• Integrated E-Connect bus
• Exceedingly light weight


E 435

ModelE 435 Mid/High Unit
Product ClassElements
Power-handling nominal (RMS)150 W RMS
Frequency response -10 dB140 Hz – 20 kHz, via integrated system filter
Nominal impedance16 ohms
Sensitivity 1W97 dB, all measurements taken under half-space conditions
Connections1x E-Connect in, 1x E-Connect out
Speaker4x 3,5″ wideband speakers
Directivity70° horizontal
Crossover frequency140 Hz, 12 dB/ oct.
Dimensions (WxHxD)11 x 38* x 12 cm 4-7/16 x 15* x 4-3/4″ (excluding E-Connect coupler dimension)
Weight2,35 kg / 5,2 lbs.

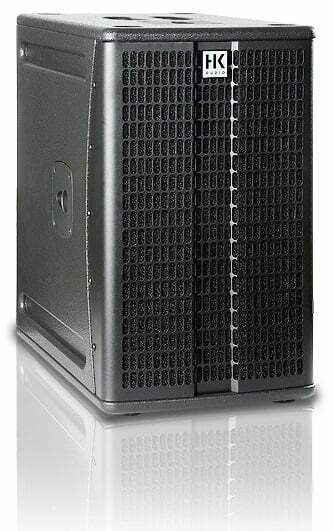

E 110 Sub A

ModelE 110 Sub A
Product ClassElements
Frequency response -10 dB45 Hz – 150 Hz, via the active system crossover
subwoofer amplifier1x 600 W / Class D @ 4 ohms
Active protectiion circuitsRMS limiter, subsonic filter, 2 system filters, depending on the number of connected mid/ high units
Connections1 Combination XLR 1/4” In, 1 XLR Out, Speakon Parallel Out, 2 E-Connect Outs
LF Speaker1x 10″
Pole mount2 E-Connect sleeves
Dimensions (WxHxD)30 x 48 x 46 cm • 11-13/16 x 18-7/8 x 18-1/8″
Weight19 kg / 41,9 lbs.
