Schertler Teddy

Rp26.350.000Rp27.050.000

Color Clear

Description


TEDDY is Schertler’s latest generation compact stage monitor. Specially designed to be the perfect on-stage partner, TEDDY provides the performing musician with 200W of power, without taking any of the limelight: The monitor’s sleek shape and “low profile” enables it to be placed close to the performer for maximum audibility, without creating a visible obstacle for the audience.

TEDDY features a coaxial speaker for constant sound directivity, with a specific inclination angle that makes it ideal for both standing and seated performances.

The monitor’s intuitive control panel includes a single Sensitivity knob (rather than a common volume control) for adjusting the signal level from -9dB to +6dB. This enables finer regulation of the signal sent from the mixer. The EQ switch provides two pre-shaped curves for adjusting the sound, while the Ground Lift switch protects the signal from unwanted ground noise.

XLR input and output connectors allow a chain of several monitors to be created – all connected to the same audio signal path. Like all latest generation Schertler amplifiers, TEDDY is fully analog.

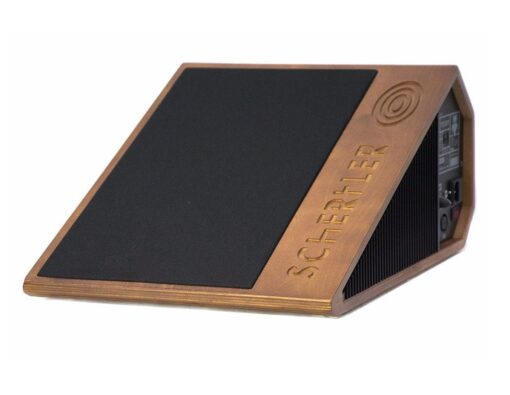

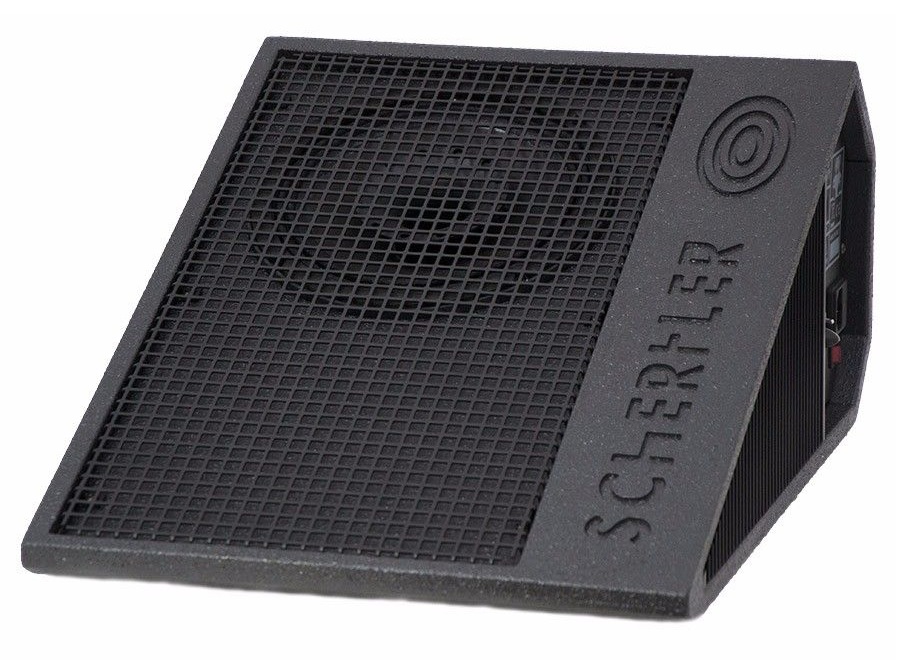

TEDDY is available in a choice of wood or anthracite finishes. The more delicate wood finish is perfect for studio or home use, blending with a range of room interiors. The anthracite finish is designed for performance and touring applications, where a more robust exterior finish is required.

Specifications

Weight12 kg (26.45lb)
Dimensions355x220x470 mm.
Frequency Response80 Hz to 20 kHz
Speakers8” Coaxial woofer 1″ Compression dirver
ConstructionBirch laminated
ControlsVolume -9to+6dB, Ground Lift, Filters: Flat, Voice and Music
InputsXLR Balanced 50Kohm @ 1Khz
Input SensitivityXLR Balanced 0dBu (0.775Vrms)
OutputsXLR balanced parallel out
CrossoverElectronic -24db/octave
SPL max120 dbSPL
Power Handling200W continous / 300W Peak
