Wireless control and monitoring via the new Bluetooth® QuickSmartMobile app*
Control your sound while in front of your system. Quickly configure up to six ELX200 loudspeakers simultaneously, and receive immediate notification during critical performance conditions.
* Bluetooth® is available in select countries.
Perfect for both portable and installed applications

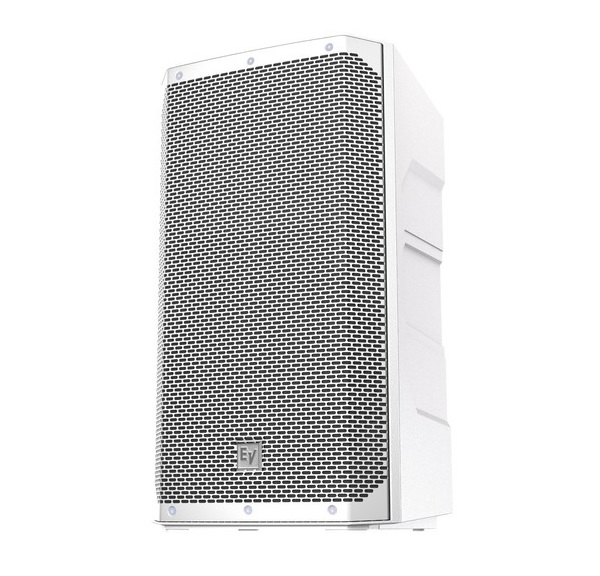

Available in black or white finishes, ELX200 enclosures offer a step up in both styling and build quality. Full range models feature lightweight, compact composite enclosures with internal reinforcement, designed to minimize resonance and increase rigidity and strength. With the lightest 18 inch wood powered sub on the market, and a stunning 10 inch top / 12 inch sub compact combo available to serve smaller venues, there are options available for every application. Professional grade hardware includes three M10 threaded suspension points for forged eyebolts, integrated pole mounts, and our proven three handle design for easy lifting.
Heavyweight performance in a lightweight package
Though ELX200 is easy to carry, its tough construction and components ensure legendary EV durability and sound quality, night after night. System reliability is verified with over 500 hours of abuse and endurance testing — far above and beyond industry norms. Super‑efficient Class‑D power amplifiers deliver distortion‑free maximum SPLs utilizing high‑sensitivity transducers — all designed and engineered by Electro‑Voice.
QuickSmartDSP provides best‑in‑class processing via EV’s signature single‑knob user interface with LCD
Easy setup via four presets (Music, Live, Speech, Club), three‑band EQ, five user‑programmable presets, sub/top system‑match crossovers, input level control and metering, and master volume control to optimize gain structure.
Electro‑Voice‑patented SST (Signal Synchronized Transducer) waveguide design combines a more compact footprint with enhanced acoustic performance
The design allows for a larger waveguide, which is placed forward in the enclosure to time‑align the woofer and the tweeter, providing exceptionally precise and consistent coverage — all with deeper, tighter bass response.
The ELX200 series offers professional Electro‑Voice audio quality, precision control, and robust, EV‑engineered components in an ultra‑lightweight package — a truly potent blend of performance and portability.
Get the smooth clarity of the EV sound in the right size to suit your needs: with 10‑inch, 12‑inch, and 15‑inch two‑way models, and 12‑inch and 18‑inch subwoofers* available, ELX200 is a flexible, feature‑rich choice for DJs, mobile entertainers, bands, and musicians.

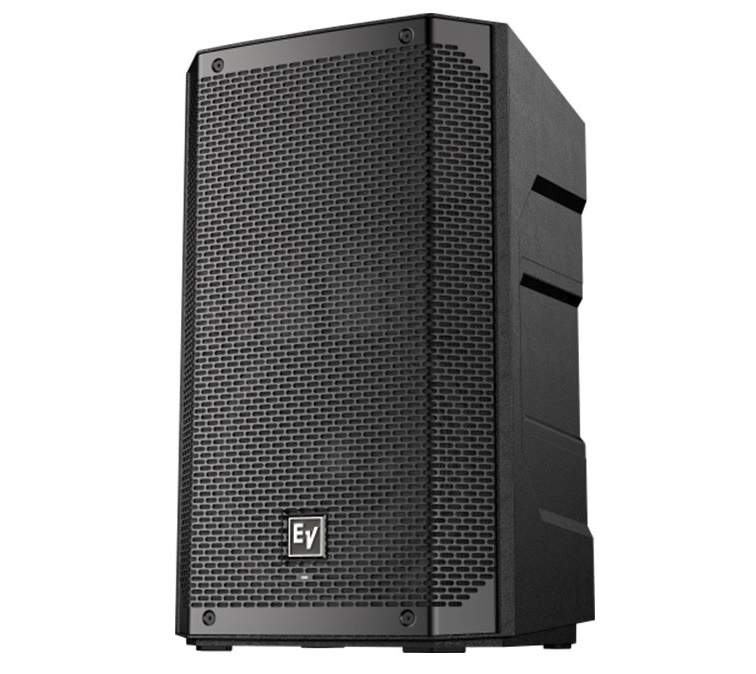

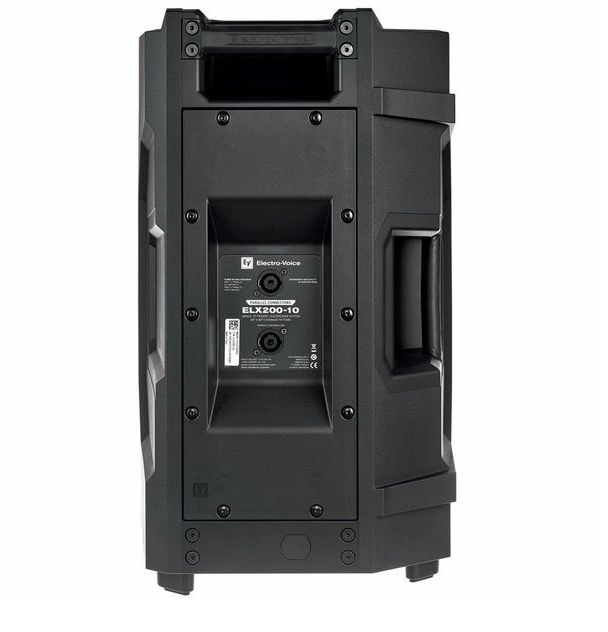

ELX200-10
10″ passive loudspeaker
1200 W (Peak), 127 dB peak SPL system that is reliability verified with over 500 hours of abuse testing and endurance testing to 4x typical industry practices.
1.4 inch DH-1L (1 inch exit) titanium compression driver for extended transparent high-frequency response.
High-output EVS-10M woofer designed to exacting specifications for superior durability and exceptional low-frequency reproduction.
EV-patented Signal Synchronized Transducers (SST) waveguide design provides precise and consistent coverage, minimal distortion, and maximized acoustical loading.
Professional-grade hardware: three M10 threaded mounting points for forged eyebolts, integrated pole-mounts and the proven ZLX two-handle design for easy lifting.
The ELX series is designed to deliver an unprecedented combination of sound quality, portability and durability at its price point. All-new custom components—tested to levels far exceeding the industry norm—make ELX200 a robust workhorse capable of handling real-world abuse and professional applications beyond the capability of competitors’ products in its category.
Every aspect of ELX200 is designed for ideal results as part of the whole – the acoustical, electrical and mechanical components all work together seamlessly. The full-range models feature a low profile form factor designed with a high-spec composite enclosure to balance weight, manageability, as well as structural integrity. The proprietary features that have made the other members of the EV portable speaker family a goto for best-in-class performance are also present: Signal Synchronized Transducers (SST) waveguide concept.
EV’s industry-leading quality and testing procedures yield efficient transducer design and meaningful specs, resulting in components that deliver accurate, linear response at the system’s highest output levels. Translation: loud and clear all the way up to the limit. Unified in one of the strongest full-range composite enclosures ever built by EV. The ELX200 is established as the new benchmark for toughness – both acoustically and physically; maximum efficiency with maximum toughness.
Specifications
Suspension
(3) M10 suspension points
Minimum Impedance
7.2Ω
HF Transducer
DH-1L 1-inch titanium compression driver
MoreSpecifications
Speaker Type
Full-Range
Woofer Size
10inch
Frequency Response (-3 dB)¹
65 Hz – 20 kHz
Frequency Range (-10 dB)¹
49 Hz – 22 kHz
Max. SPL/1m (calc)²
127dB
Coverage (Nominal -6 dB) H
90°
Coverage (Nominal -6 dB) V
60°
LF Transducer
EVS-10M 254 mm (10 in)
Power Rating
1200W
Crossover Frequency
2 kHz
Connector Type
Dual NL4
Enclosure Material
Polypropylene Composite
Grille
18 AWG steel with powdercoat
Available Color
Black or White
Height
20.91″ (531mm)
Width
12.99″ (330mm)
Recommended High-Pass Frequency
55Hz
Depth
12.56″ (319mm)
Weight Net
29.54lbs (13.4kg)
Shipping Weight
33.73lbs (15.3kg)
Family
ELX200
Power Handling (Continuous / Peak)
300 W/1200W
Nominal Impedance
8Ω
Axial Sensitivity (SPL, 1 W @ 1 m)
90dB

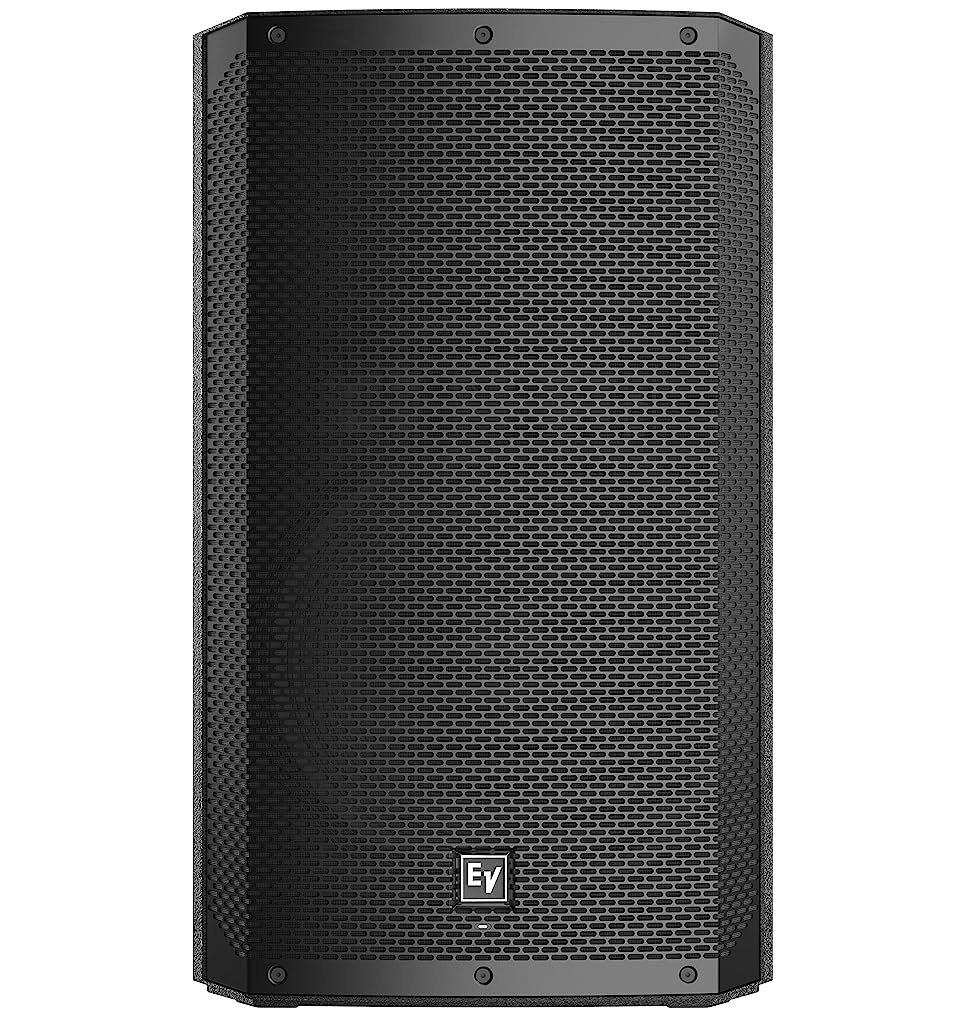

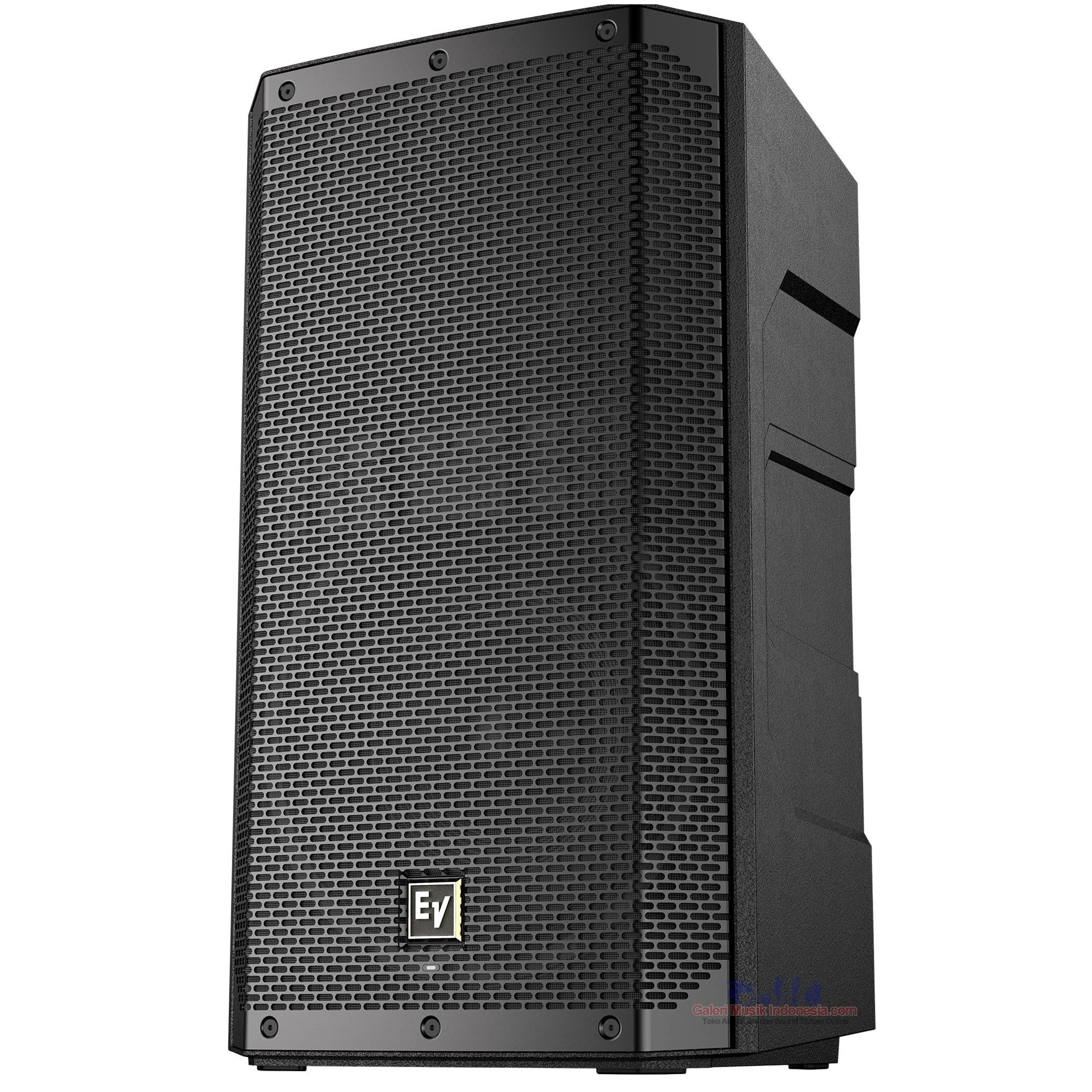

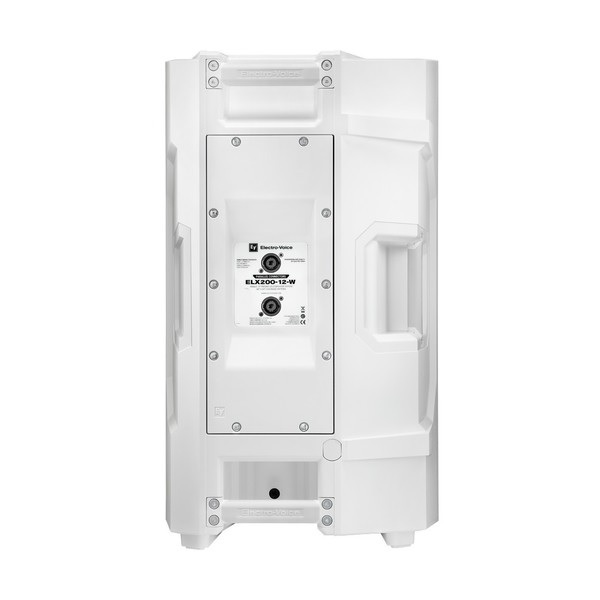

ELX200-12
12″ passive loudspeaker
1200 W (peak), 128 dB peak SPL system that is reliability verified with over 500 hours of abuse testing and endurance testing to 4x typical industry practices.
1.4 inch DH-1L (1 inch exit) titanium compression driver for extended transparent high-frequency response.
High-output EVS-12M woofer designed to exacting specifications for superior durability and exceptional low-frequency reproduction.
EV-patented Signal Synchronized Transducers (SST) waveguide design provides precise and consistent coverage, minimal distortion, and maximized acoustical loading.
Professional-grade hardware: three M10 threaded mounting points for forged eyebolts, integrated pole-mounts and the proven ZLX three-handle design for easy lifting.
The ELX series is designed to deliver an unprecedented combination of sound quality, portability and durability at its price point. All-new custom components—tested to levels far exceeding the industry norm—make ELX200 a robust workhorse capable of handling real-world abuse and professional applications beyond the capability of competitors’ products in its category.
Every aspect of ELX200 is designed for ideal results as part of the whole – the acoustical, electrical and mechanical components all work together seamlessly. The full-range models feature a low profile form factor designed with a high-spec composite enclosure to balance weight, manageability, as well as structural integrity. The proprietary features that have made the other members of the EV portable speaker family a goto for best-in-class performance are also present: Signal Synchronized Transducers (SST) waveguide concept.
EV’s industry-leading quality and testing procedures yield efficient transducer design and meaningful specs, resulting in components that deliver accurate, linear response at the system’s highest output levels. Translation: loud and clear all the way up to the limit. Unified in one of the strongest full-range composite enclosures ever built by EV. The ELX200 is established as the new benchmark for toughness – both acoustically and physically; maximum efficiency with maximum toughness.
Specifications
Suspension
(3) M10 suspension points
Minimum Impedance
7.5Ω
HF Transducer
DH-1L 1-inch titanium compression driver
More Specifications
Speaker Type
Full-Range
Woofer Size
12inch
Frequency Response (-3 dB)¹
77 Hz – 17 kHz
Frequency Range (-10 dB)¹
51 Hz – 20 kHz
Max. SPL/1m (calc)²
128dB
Coverage (Nominal -6 dB) H
90°
Coverage (Nominal -6 dB) V
60°
LF Transducer
EVS-12M 300 (12 in)
Power Rating
1200W
Crossover Frequency
1.7 kHz
Connector Type
Dual NL4
Enclosure Material
Polypropylene composite
Grille
18 AWG steel with powdercoat
Available Color
Black or White
Height
24.76″ (629mm)
Recommended High-Pass Frequency
50 Hz
Width
14.29″ (363mm)
Depth
13.54″ (344mm)
Weight Net
33.51lbs (15.2kg)
Shipping Weight
37.7lbs (17.1kg)
Family
ELX200
Power Handling (Continuous / Peak)
300W/1200W
Nominal Impedance
8Ω
Axial Sensitivity (SPL, 1 W @ 1 m)
93dB

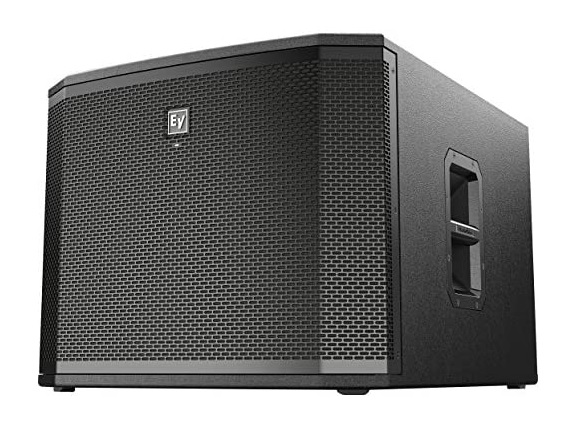

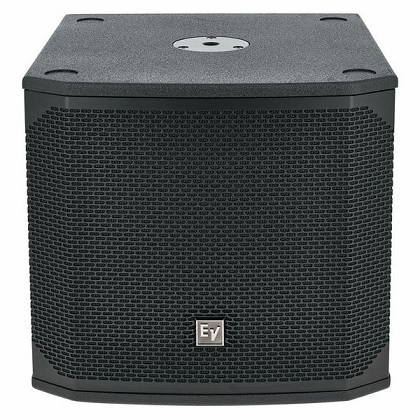

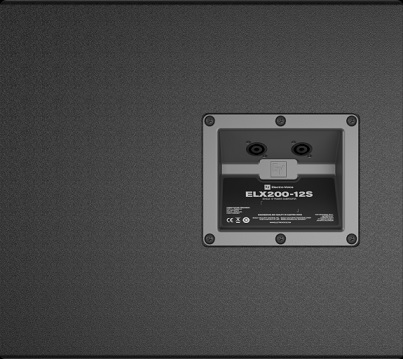

ELX200-12S
12″ passive subwoofer
1600 W (peak), 129 dB peak SPL utilizing high sensitivity transducer designed and engineered by EV for maximum punch.
High-output EVS-12L woofer designed to exacting specifications for superior durability and exceptional low-frequency reproduction.
System reliability verified with over 500 hours of abuse testing and endurance testing.
Ideal for portable and installed applications. Lightweight, compact 15 mm wood enclosure with internal bracing with durable polyurea top-coat finish.
Professional-grade hardware: integrated M20 threaded pole mount plate and two-handle design for easy lifting.
The ELX series is designed to deliver an unprecedented combination of sound quality, portability and durability at its price point. All-new custom components—tested to levels far exceeding the industry norm—make ELX200 a robust workhorse capable of handling real-world abuse and professional applications beyond the capability of competitors’ products in its category.
Every aspect of ELX200 is designed for ideal results as part of the whole – the acoustical, electrical and mechanical components all work together seamlessly. The subwoofers pack powerful low-frequency output into a surprisingly compact footprint, and feature tuned 15 mm thick wood enclosures with a premium top-coat finish. The proprietary features that have made the other members of the EV portable speaker family a go-to for best-in-class performance are also present.
EV’s industry-leading quality and testing procedures yield efficient transducer design and meaningful specs, resulting in components that deliver accurate, linear response at the system’s highest output levels. Translation: loud and clear all the way up to the limit. Unified in one of the strongest full-range composite enclosures ever built by EV. The ELX200 is established as the new benchmark for toughness – both acoustically and physically; maximum efficiency with maximum toughness.
Specifications
Suspension
Minimum Impedance
6.9Ω
HF Transducer
More Specifications
Speaker Type
Subwoofer
Woofer Size
12inch
Frequency Response (-3 dB)¹
42 Hz – 220 Hz
Frequency Range (-10 dB)¹
33 Hz – 300 Hz
Max. SPL/1m (calc)²
129dB
LF Transducer
EVS-12L 300 mm (12 in)
Power Rating
1600W
Connector Type
Dual NL4
Enclosure Material
15 mm plywood with durable polyurea top-coat finish
Grille
18 AWG steel with powdercoat
Available Color
Black or White
Height
15.63″ (397mm)
Width
17.52″ (445mm)
Recommended High-Pass Frequency
42Hz
Depth
17.99″ (457mm)
Weight Net
44.53lbs (20.2kg)
Shipping Weight
44.53lbs (20.2kg)
Family
ELX200
Nominal Impedance
8 ΩΩ
Axial Sensitivity (SPL, 1 W @ 1 m)
93dB
Power Handling (Continuous / Peak)
400 W/1600W

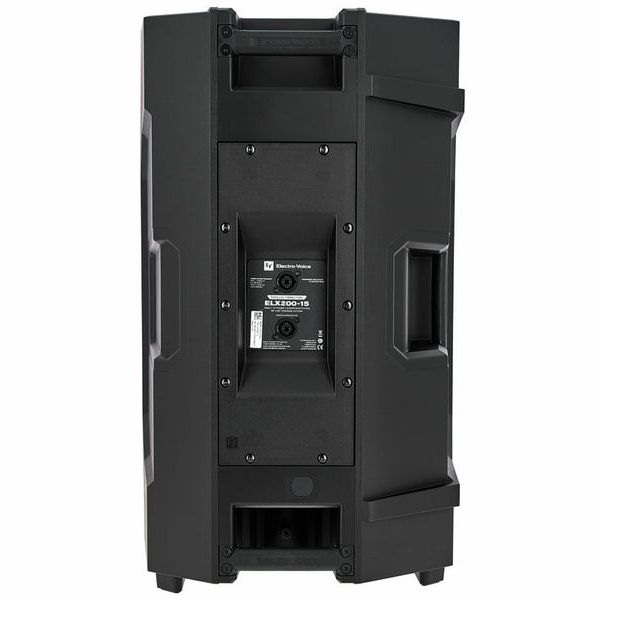

ELX200-15
15″ passive loudspeaker
1200 W (peak), 130 dB peak SPL system that is reliability verified with over 500 hours of abuse testing and endurance testing to 4x typical industry practices.
1.4 inch DH-1L (1 inch exit) titanium compression driver for extended transparent high-frequency response.
High-output EVS-15M woofer designed to exacting specifications for superior durability and exceptional low-frequency reproduction.
EV-patented Signal Synchronized Transducers (SST) waveguide design provides precise and consistent coverage, minimal distortion, and maximized acoustical loading.
Professional-grade hardware: three M10 threaded mounting points for forged eyebolts, integrated pole-mounts and the proven ZLX three-handle design for easy lifting.
The ELX series is designed to deliver an unprecedented combination of sound quality, portability and durability at its price point. All-new custom components—tested to levels far exceeding the industry norm—make ELX200 a robust workhorse capable of handling real-world abuse and professional applications beyond the capability of competitors’ products in its category.
Every aspect of ELX200 is designed for ideal results as part of the whole – the acoustical, electrical and mechanical components all work together seamlessly. The full-range models feature a low profile form factor designed with a high-spec composite enclosure to balance weight, manageability, as well as structural integrity. The proprietary features that have made the other members of the EV portable speaker family a goto for best-in-class performance are also present: Signal Synchronized Transducers (SST) waveguide concept.
EV’s industry-leading quality and testing procedures yield efficient transducer design and meaningful specs, resulting in components that deliver accurate, linear response at the system’s highest output levels. Translation: loud and clear all the way up to the limit. Unified in one of the strongest full-range composite enclosures ever built by EV. The ELX200 is established as the new benchmark for toughness – both acoustically and physically; maximum efficiency with maximum toughness.
Specifications
Suspension
(3) M10 suspension points
Minimum Impedance
7.0Ω
HF Transducer
DH-1L 1-inch titanium compression driver
More Specifications
Speaker Type
Full-Range
Woofer Size
15inch
Frequency Response (-3 dB)¹
77 Hz – 16 kHz
Frequency Range (-10 dB)¹
52 Hz – 19 kHz
Max. SPL/1m (calc)²
130dB
Coverage (Nominal -6 dB) H
90°
Coverage (Nominal -6 dB) V
60°
LF Transducer
EVS-15M 381 mm (15 in)
Power Rating
1200W
Crossover Frequency
1.6 kHz
Connector Type
Dual NL4
Enclosure Material
Polypropylene composite
Grille
18 AWG steel with powdercoat
Available Color
Black or White
Height
27.95″ (710mm)
Recommended High-Pass Frequency
42Hz
Width
16.65″ (423mm)
Depth
15.12″ (384mm)
Weight Net
41.23lbs (18.7kg)
Shipping Weight
47.18lbs (21.4kg)
Family
ELX200
Axial Sensitivity (SPL, 1 W @ 1 m)
95dB
Power Handling (Continuous / Peak)
300W/1200W
Nominal Impedance
8Ω

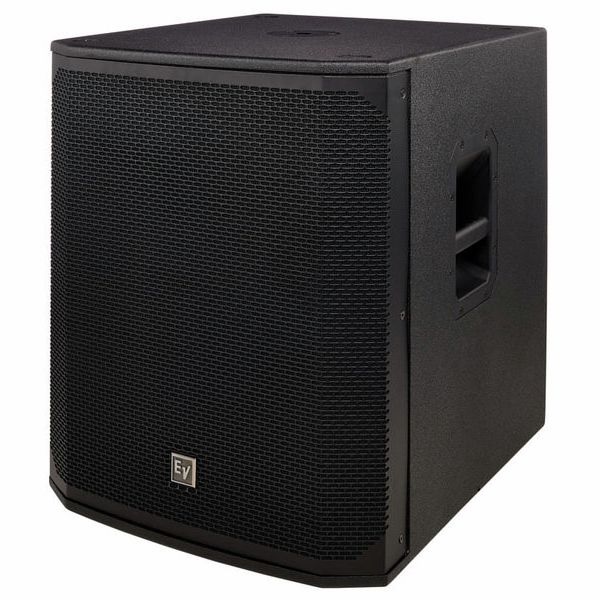

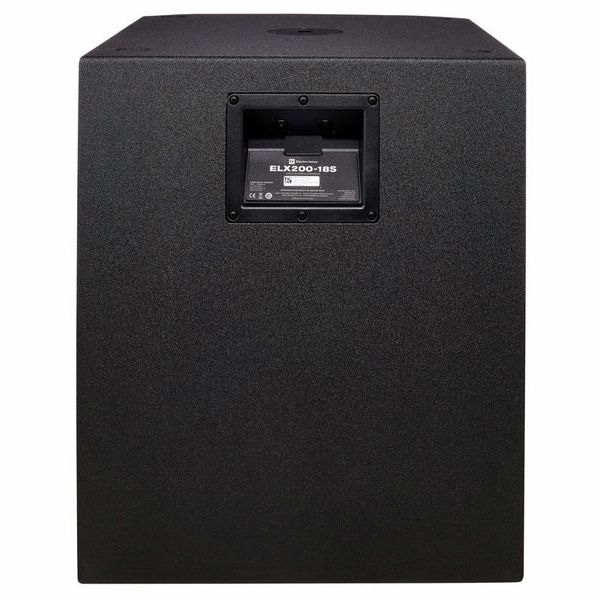

ELX200-18S
18″ passive subwoofer
1600 W (peak), 133 dB peak SPL utilizing high sensitivity transducer designed and engineered by EV for maximum punch.
High-output EVS-18L woofer designed to exacting specifications for superior durability and exceptional low-frequency reproduction.
System reliability verified with over 500 hours of abuse testing and endurance testing.
Ideal for portable and installed applications.
Lightweight, compact 15 mm wood enclosure with internal bracing with durable polyurea top-coat finish.
Professional-grade hardware: integrated M20 threaded pole mount plate and two-handle design for easy lifting.
The ELX series is designed to deliver an unprecedented combination of sound quality, portability and durability at its price point. All-new custom components—tested to levels far exceeding the industry norm—make ELX200 a robust workhorse capable of handling real-world abuse and professional applications beyond the capability of competitors’ products in its category.
Every aspect of ELX200 is designed for ideal results as part of the whole – the acoustical, electrical and mechanical components all work together seamlessly. The subwoofers pack powerful low-frequency output into a surprisingly compact footprint, and feature tuned 15 mm thick wood enclosures with a premium top-coat finish. The proprietary features that have made the other members of the EV portable speaker family a go-to for best-in-class performance are also present.
EV’s industry-leading quality and testing procedures yield efficient transducer design and meaningful specs, resulting in components that deliver accurate, linear response at the system’s highest output levels. Translation: loud and clear all the way up to the limit. Unified in one of the strongest full-range composite enclosures ever built by EV. The ELX200 is established as the new benchmark for toughness – both acoustically and physically; maximum efficiency with maximum toughness.
Specifications
Suspension
Minimum Impedance
7.2 ΩΩ
HF Transducer
More Specifications
Speaker Type
Subwoofer
Woofer Size
18inch
Frequency Response (-3 dB)¹
45 Hz – 200Hz
Frequency Range (-10 dB)¹
28 Hz – 300 Hz
Max. SPL/1m (calc)²
133 HzdB
LF Transducer
EVS-18L 457 mm (18 in)
Power Rating
1600W
Connector Type
Dual NL4
Enclosure Material
15 mm plywood with durable polyurea top-coat finish
